Tuxedo · Powersport Lifts
ELECTRIC / HYDRAULIC UTV FRAME
Request a quote

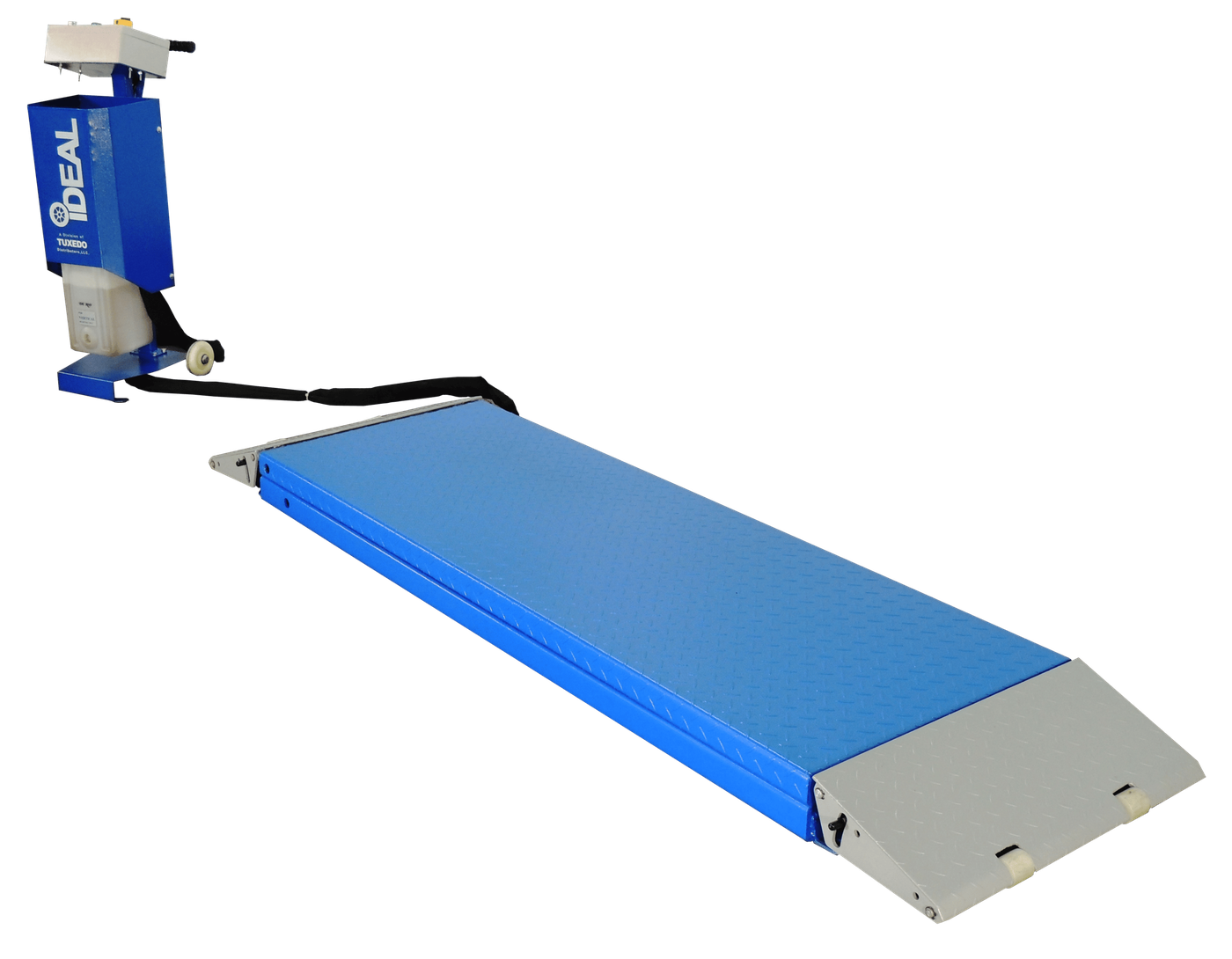

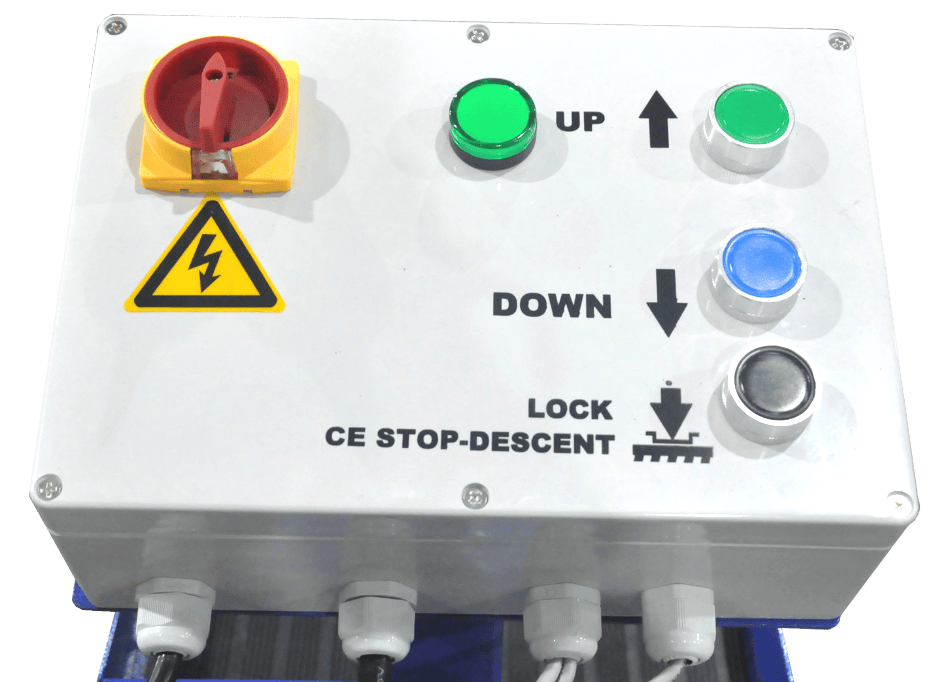

UF-2500EH-X ‘pro-series’ iDEAL, Electric / hydraulic utv frame lift Exclusive ‘wheels free’ design for the largest UTVs to smallest ATVs. Provides SMALL LIFT FOOTPRINT for ADDITIONAL WORKSPACE 2,500 lbs capacity 43″ RISE HEIGHT (49” w/ rubber lift pads) 24″W X 88.9″L PLATFORM SIZE 4.75” MIN. HEIGHT smooth & rapid 110V Electric / Hydraulic operation fully operational control panel W/ ELECTRO-MAGNET
2,500 lb capacity
Available — freight in 5–10 days
Authorized dealer pricing
Nationwide U.S. shipping
Specifications
- phase
- 1
- weight
- 740 lbs
- voltage
- 110V
- amperage
- 18A
- material
- Heavy-Duty Diamond Plate
- shipping
- Ship Weight: 740 lbs
- frequency
- 60Hz
- max height
- 43"
- min height
- 4-3/4"
- lifting time
- 25S
- lowering time
- 25S
- overall width
- 24"
- platform size
- 67" x 24"
- overall length
- 67" – 88-7/8"
- rated capacity
- 2,500 lbs
- shipping weight
- 740 lbs
Most lifts ship LTL freight with lift-gate. Installation and certification available — ask sales for a turnkey quote.
