ELECTRIC / HYDRAULIC UTV LIFT BENCH
Request a quote

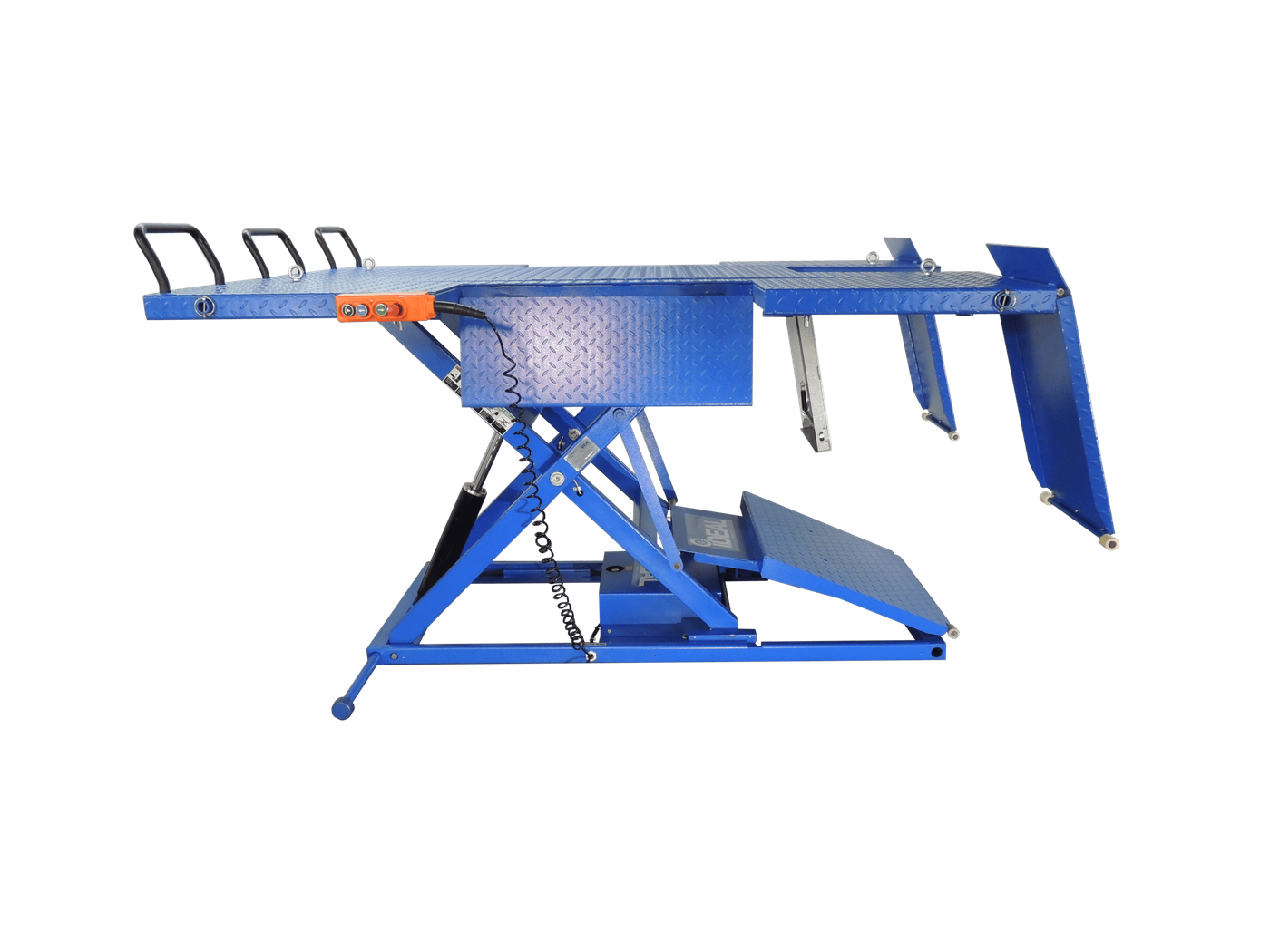

U-2200IEH-XR ELECTRIC / HYDRAULIC UTV LIFT BENCH EXCLUSIVE – ‘FULL WIDTH’ RETRACTABLE RAMP SYSTEM EXCLUSIVE – SIDE EXTENSIONS W/ CENTER DROP PANELS 2,200 LBS. CAPACITY 47″ RISE HEIGHT 65″ X 88.6″ PLATFORM SIZE HAND HELD REMOTE CONTROL PENDANT 110V INTEGRATED ELECTRIC / HYDRAULIC POWER UNIT MAGNETIC LOCK RELEASE SIX LOCKING POSITIONS REAR DROP DOWN SERVICE PANEL STABILIZER BAR WHEEL STOPS TIE-DOWN
2,200 lb capacity
Available — freight in 5–10 days
Authorized dealer pricing
Nationwide U.S. shipping
Specifications
- phase
- 1 PH
- weight
- 970 lbs
- voltage
- 110V
- amperage
- 18A
- shipping
- Ship Weight: 970 lbs
- frequency
- 60Hz

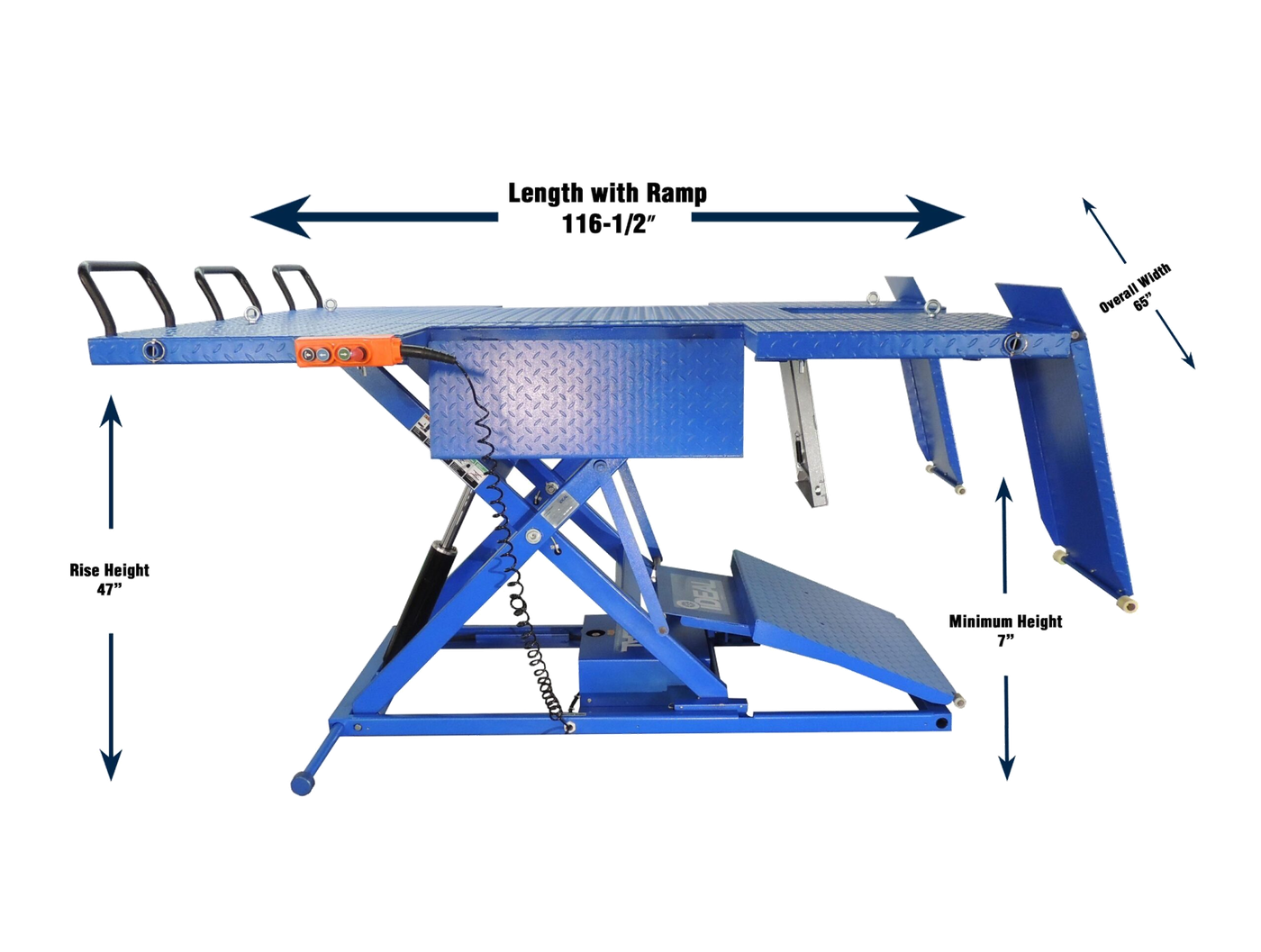

- max height
- 47-1/4"
- min height
- 7"
- lifting time
- 30S
- lowering time
- 30S
- overall width
- 65"
- platform size
- 88-5/8" x 65"
- overall length
- 116-1/2"
- rated capacity
- 2,200 lbs
Most lifts ship LTL freight with lift-gate. Installation and certification available — ask sales for a turnkey quote.
