Tuxedo · Two Post Lifts
TWO POST FLOOR PLATE
Request a quote

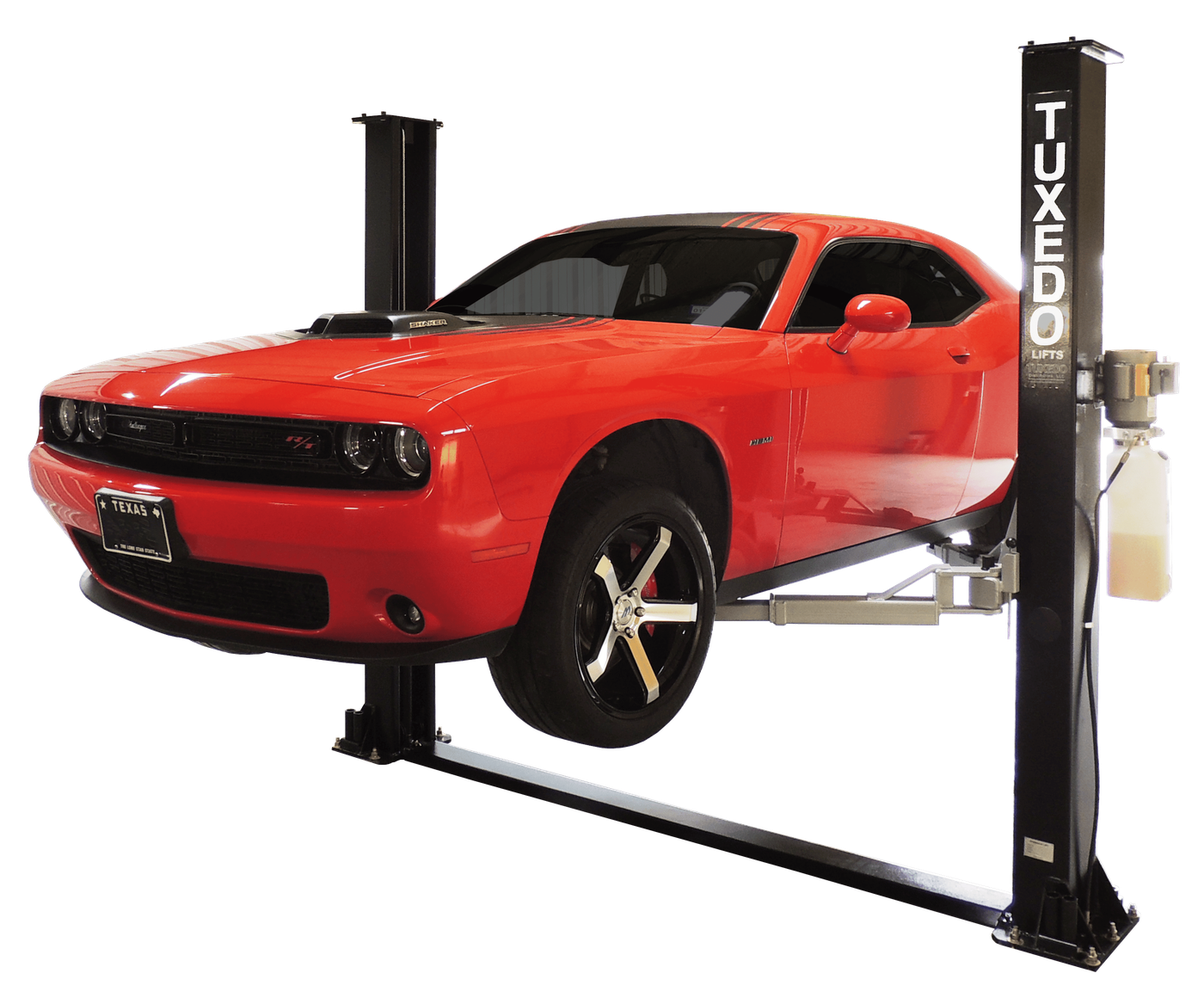

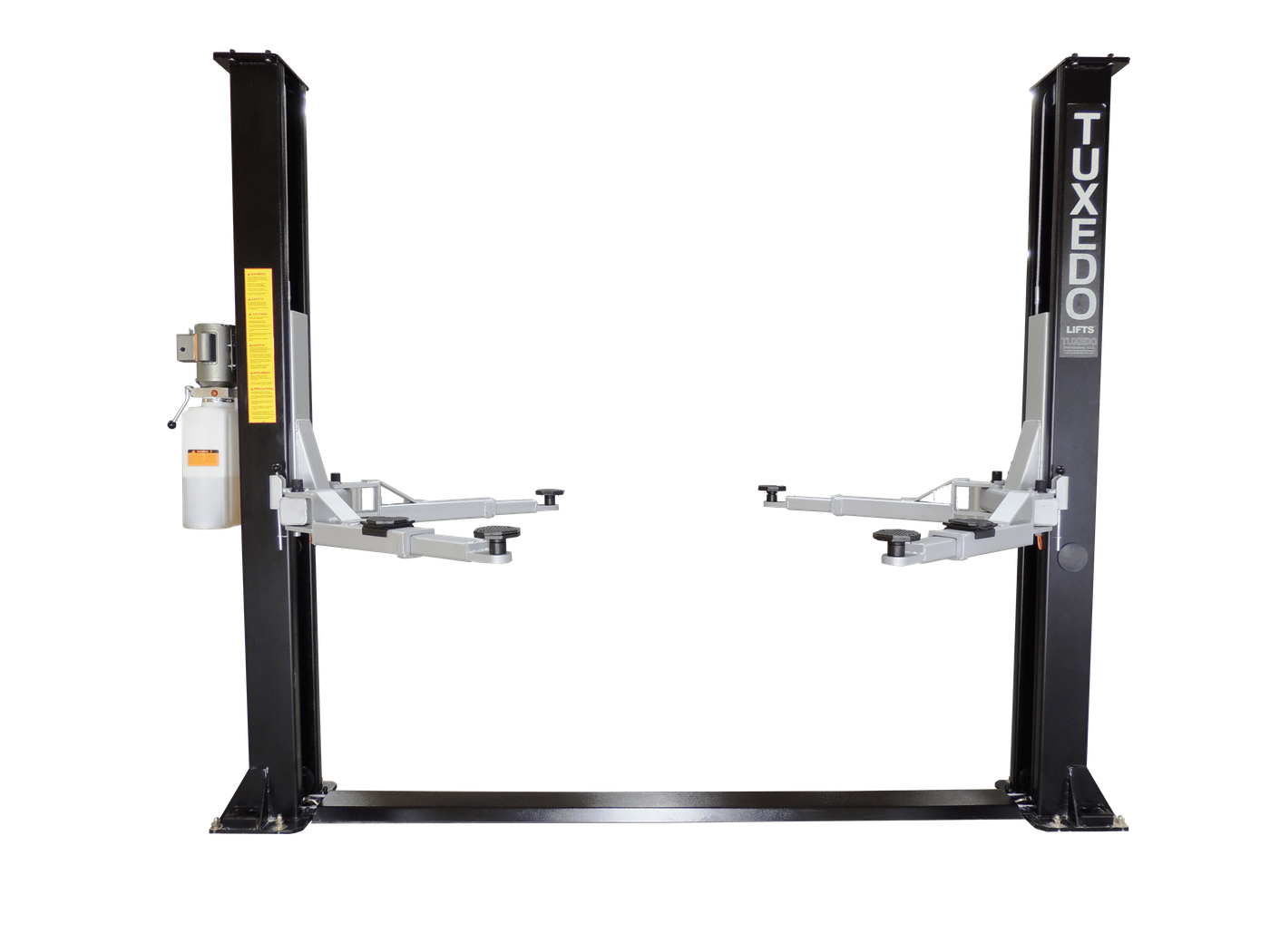

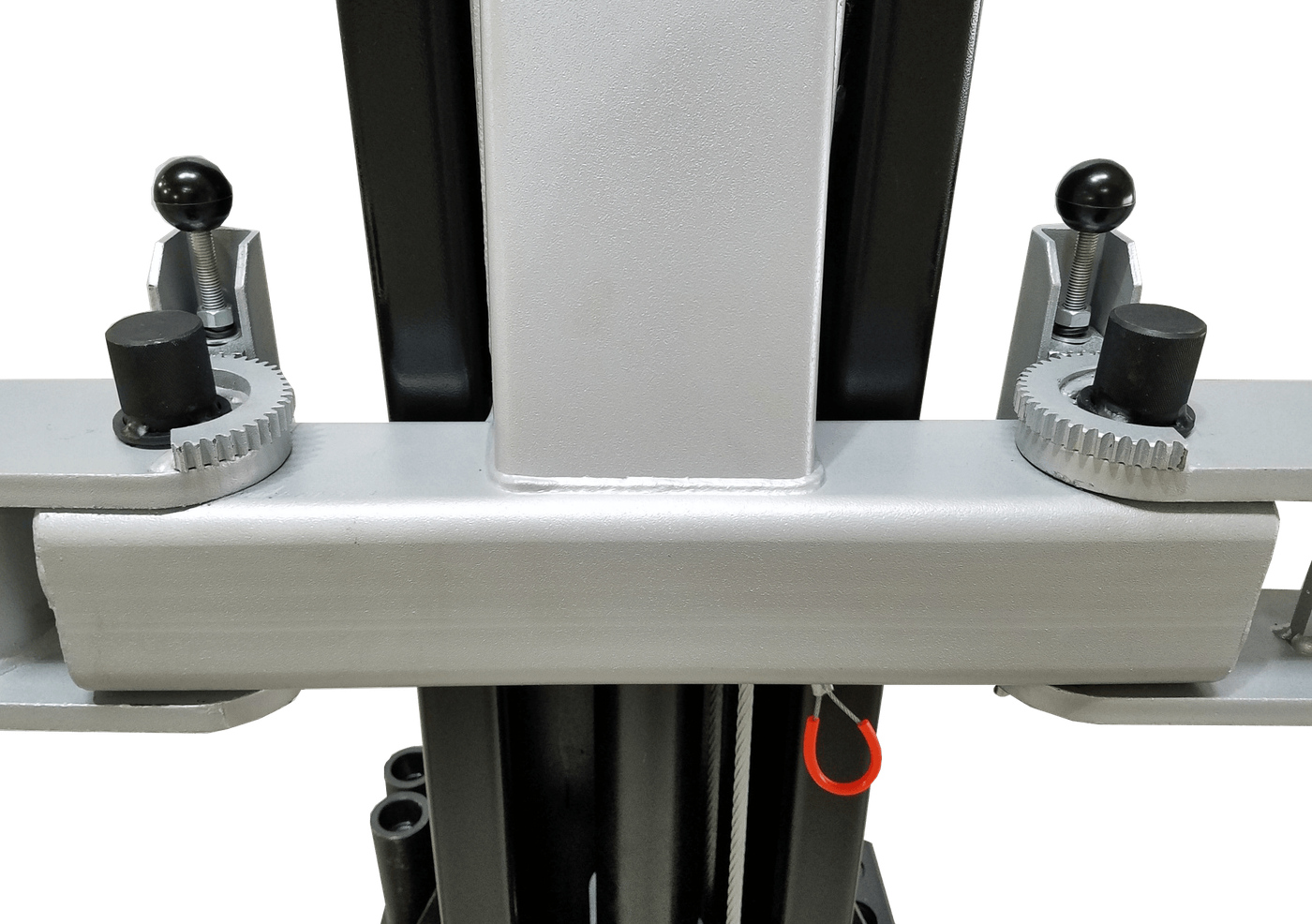

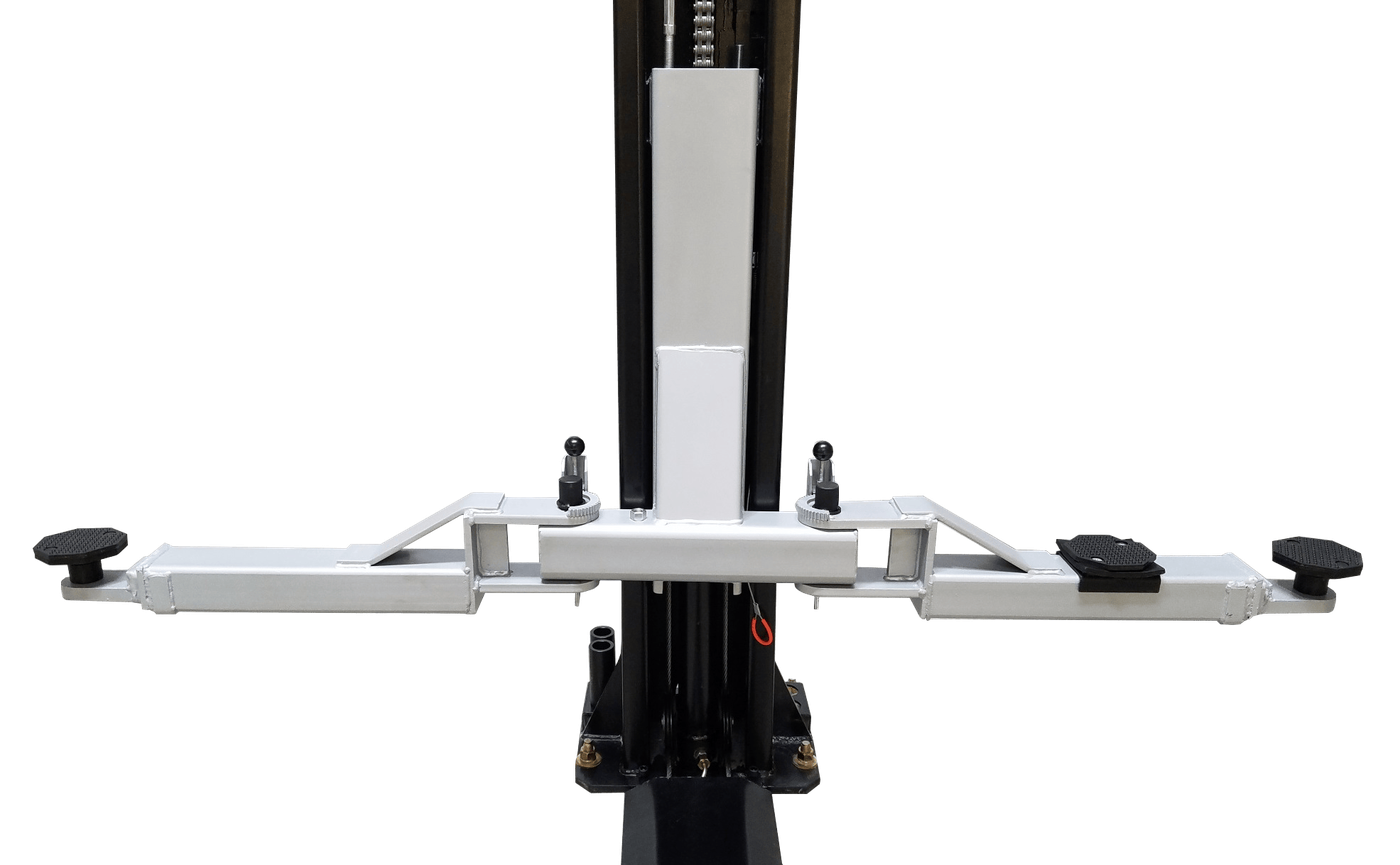

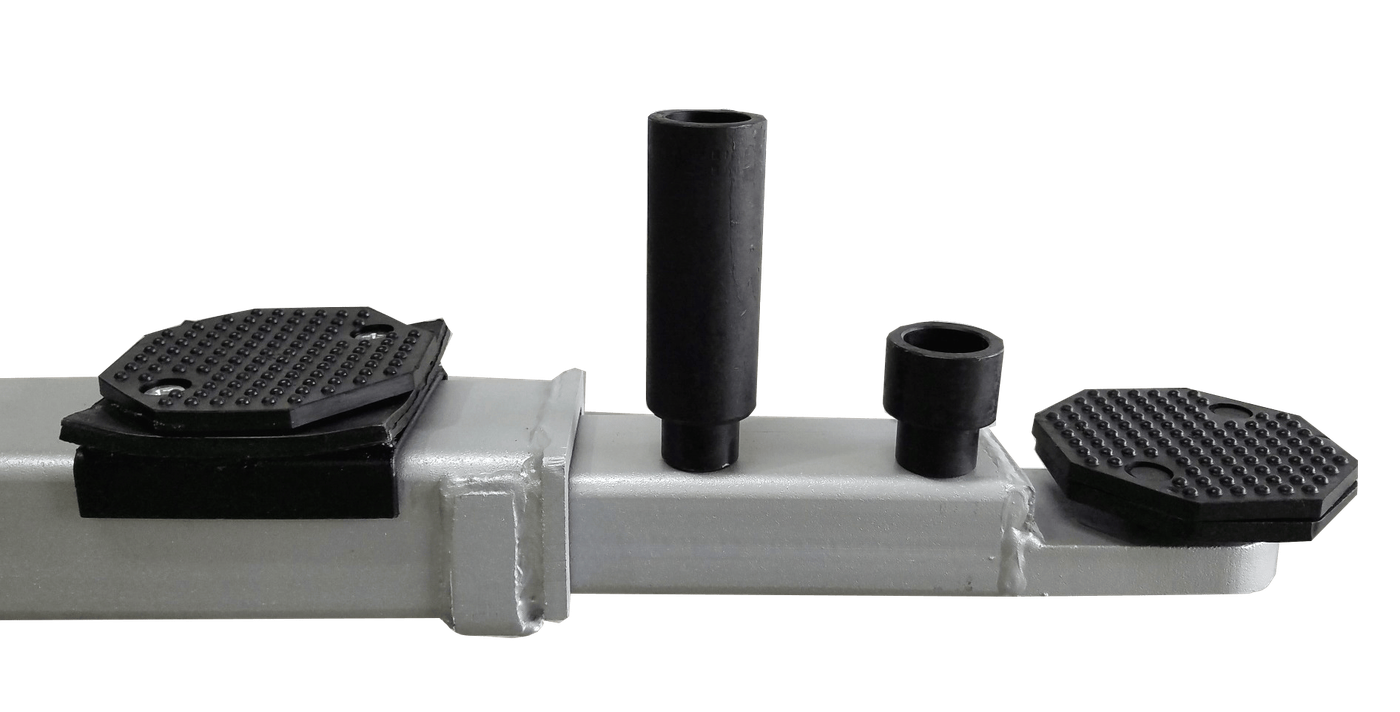

Tuxedo, Two Post Floor Plate lift 9,000 lbs capacity Symmetric Arms Chain Drive Cylinders Dual Point Lock Release Auto Arm Restraint System Low profile drop-in Lift Pads SADDLE PAD ADAPTORS (1 Pair) Stackable Adapters Included Black color standard
9,000 lb capacity
Available — freight in 5–10 days
Authorized dealer pricing
Nationwide U.S. shipping
Specifications
- color
- Black
- weight
- 1295 lbs
- voltage
- 220V
- amperage
- 20 AMP
- shipping
- 1,295 lbs
- max height
- 72 inches
- min height
- 4 inches
- drive system
- Chain Drive Cylinders
- safety locks
- Dual Point Lock Release
- arm reach max
- 45 inches
- arm reach min
- 31 inches
- overall width
- 141 inches
- width overall
- 141 inches
- lifting height
- 72 inches
- overall height
- 112 inches
- rated capacity
- 9000 lbs.
- shipping weight
- 1295 lbs
- lifting capacity
- 9000 lbs.
- drive thru clearance
- 101-11/16 inches
- width between columns
- 110-3/8 inches
Most lifts ship LTL freight with lift-gate. Installation and certification available — ask sales for a turnkey quote.
