TWO POST FLOOR PLATE
Request a quote

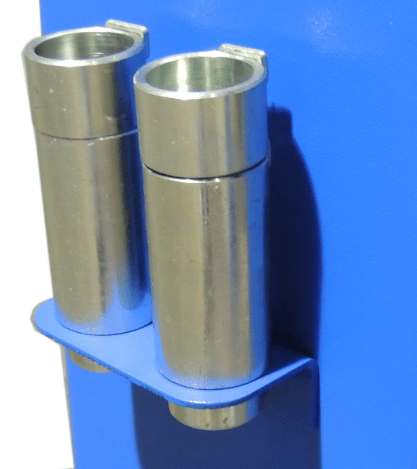

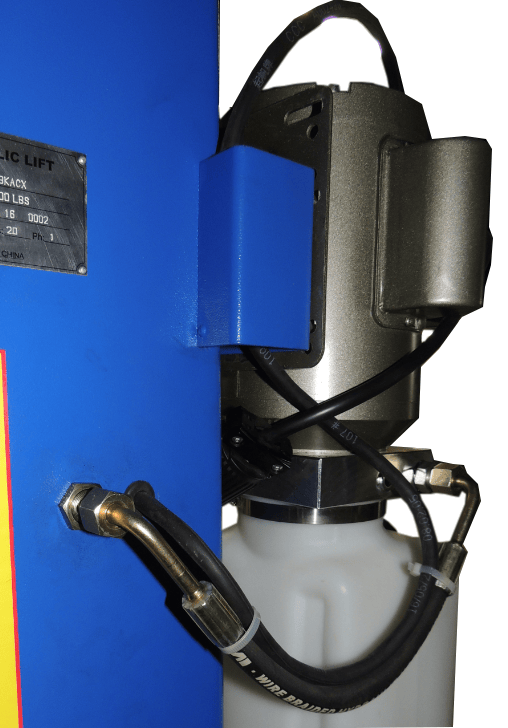

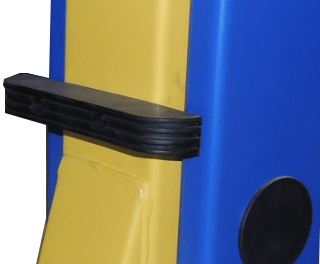

Two Post Floor Plate 9,000 lbs capacity Symmetric Arms Rubber Door Guards Chain Drive Cylinders Dual Point Lock Release Auto Arm Restraint System Internal Hose routing Low profile Spin Up Lift Pads Stackable Adapters Included
9,000 lb capacity
Available — freight in 5–10 days
Authorized dealer pricing
Nationwide U.S. shipping
Specifications
- weight
- 1,270 lbs
- voltage
- 220V
- amperage
- 20 AMP
- max height
- 72"
- min height
- 4"
- arm reach max
- 45"
- arm reach min
- 31"
- overall width
- 134-58"
- overall height
- 111-7/8"
- rated capacity
- 9,000 lbs
- drive thru clearance
- 101"
- width between columns
- 110-3/8"
Most lifts ship LTL freight with lift-gate. Installation and certification available — ask sales for a turnkey quote.
