Tuxedo · Two Post Lifts
Tuxedo TP9KACX 9,000-lb 2-Post Car Lift
Model TP9KACX
Price
$2,500 each
- Base freight:
- $545 each
- Equipment + base freight:
- $3,045 each
Per item, before tax. Liftgate, unloading, residential or limited-access service and installation are not included.
Planning a business equipment purchase? Explore financing for equipment purchases of $5,000+.
Explore financingIn stock · Condition: New
Manufacturer part number: TP9KACX
Base freight: $545.00 per unit to the 48 contiguous states and Washington, DC. Tax is calculated at checkout. Installation and optional accessories are separate.
FORKLIFT REQUIRED for residential delivery. The customer is responsible for unloading. Without suitable unloading equipment or for special delivery service, request a quote before ordering.
Prices shown cover equipment only. Freight or delivery, tax, installation and optional accessories are confirmed separately in your final quote.

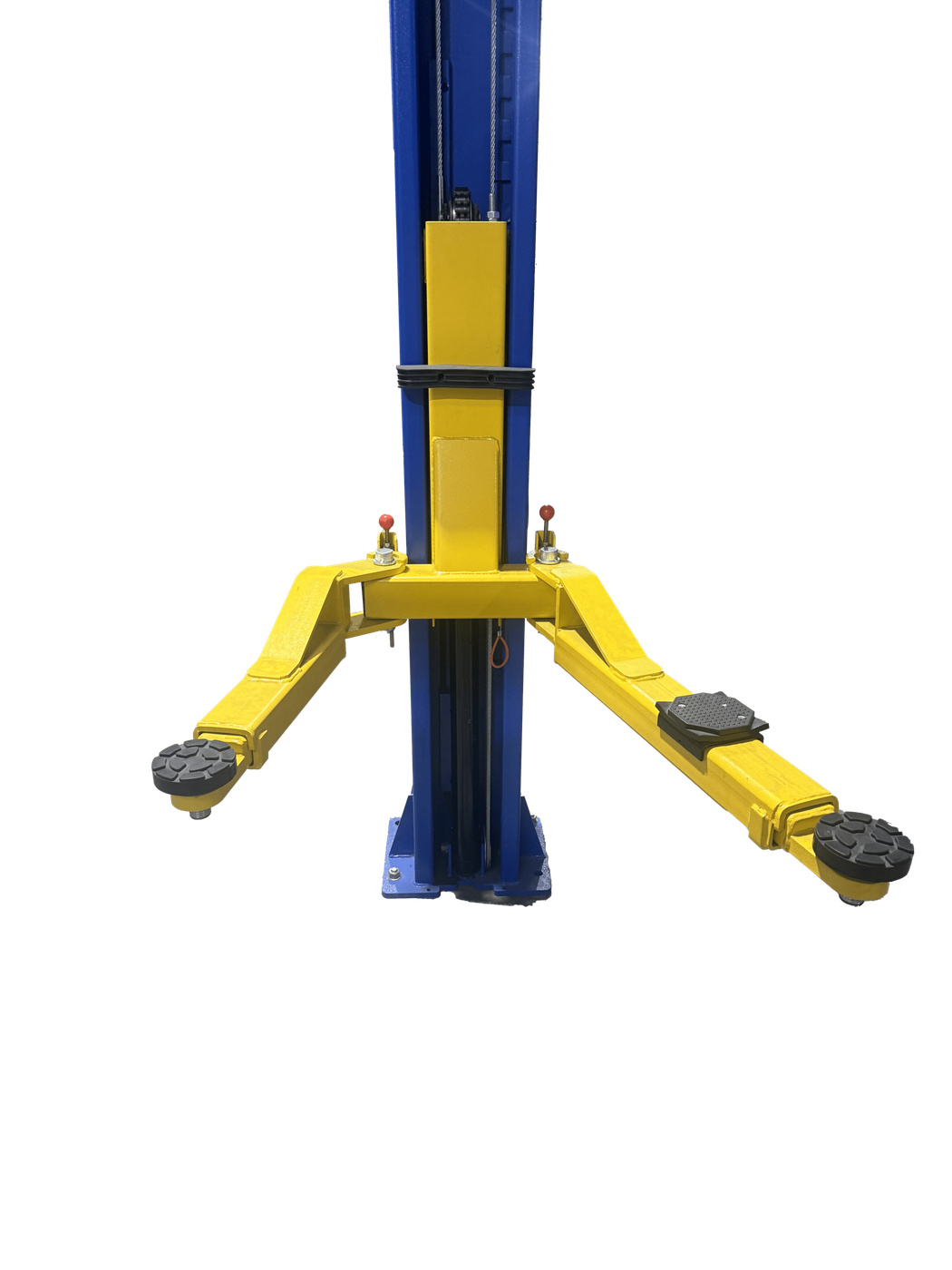

Two Post Clear Floor 9,000 lbs capacity Asymmetric Arms Rubber Door Guards Chain Drive Cylinders Dual Point Lock Release Auto Arm Restraint System Single Piece Column Internal Hose routing Low profile Spin Up Lift Pads Stackable Adapters Included
Manufacturer specifications
- Lifting capacity
- 9,000 lb
- Voltage
- 220V
- Amperage
- 20 AMP
- Shipping weight
- Shipping weight is 1,370 lbs.
- Max Height
- 72"
- Min Height
- 4"
- Arm Reach Max
- 41"
- Arm Reach Min
- 29"
- Overall Width
- 138"
- Overall Height
- 142-7/8"
- Rated Capacity
- 9000 lbs
- Lifting Capacity
- 9000 lbs
- Drive Thru Clearance
- 96"
- Width Between Columns
- 113-5/8"
Specifications as published by the manufacturer.
Larger equipment ships LTL freight. Delivery method, lead time and access requirements are confirmed in writing with your quote.
Is the TP9KACX right for you?
Based on the manufacturer's published specifications. Confirm installation requirements in the manufacturer manual before ordering.
Who it suits
- Published 9,000 lb rated capacity with asymmetric arms, which set the vehicle back between the columns for easier door opening.
- Clear-floor design with internal hose routing: nothing crosses the floor between the columns.
- Published short-arm reach 29"–41" and long-arm reach 37"–57"; lift pads start at a 4" minimum height.
Measure before you order
- Ceiling: the published overall height is 142-7/8". Check the lowest point of your ceiling, door track, opener and lights against the manual's height requirement.
- Bay width: overall width 138" and 113-5/8" between columns; drive-thru clearance is 96".
- Power: listed as 220V, 20 amp. Confirm your circuit with an electrician.
- Concrete: confirm slab thickness and strength against the manufacturer manual before installation.
Delivery & receiving
- Published shipping weight is 1,370 lb. Residential freight delivery requires a forklift on site; tell us about any access limits when you request a quote.
