Tuxedo TP12KFX — Two Post Floor Plate
Model TP12KFX
Request a quote
Planning a business equipment purchase? Explore financing for equipment purchases of $5,000+.
Explore financingThis model is quoted rather than listed. Equipment pricing, freight or delivery, tax, installation and optional accessories are confirmed separately in your final quote.

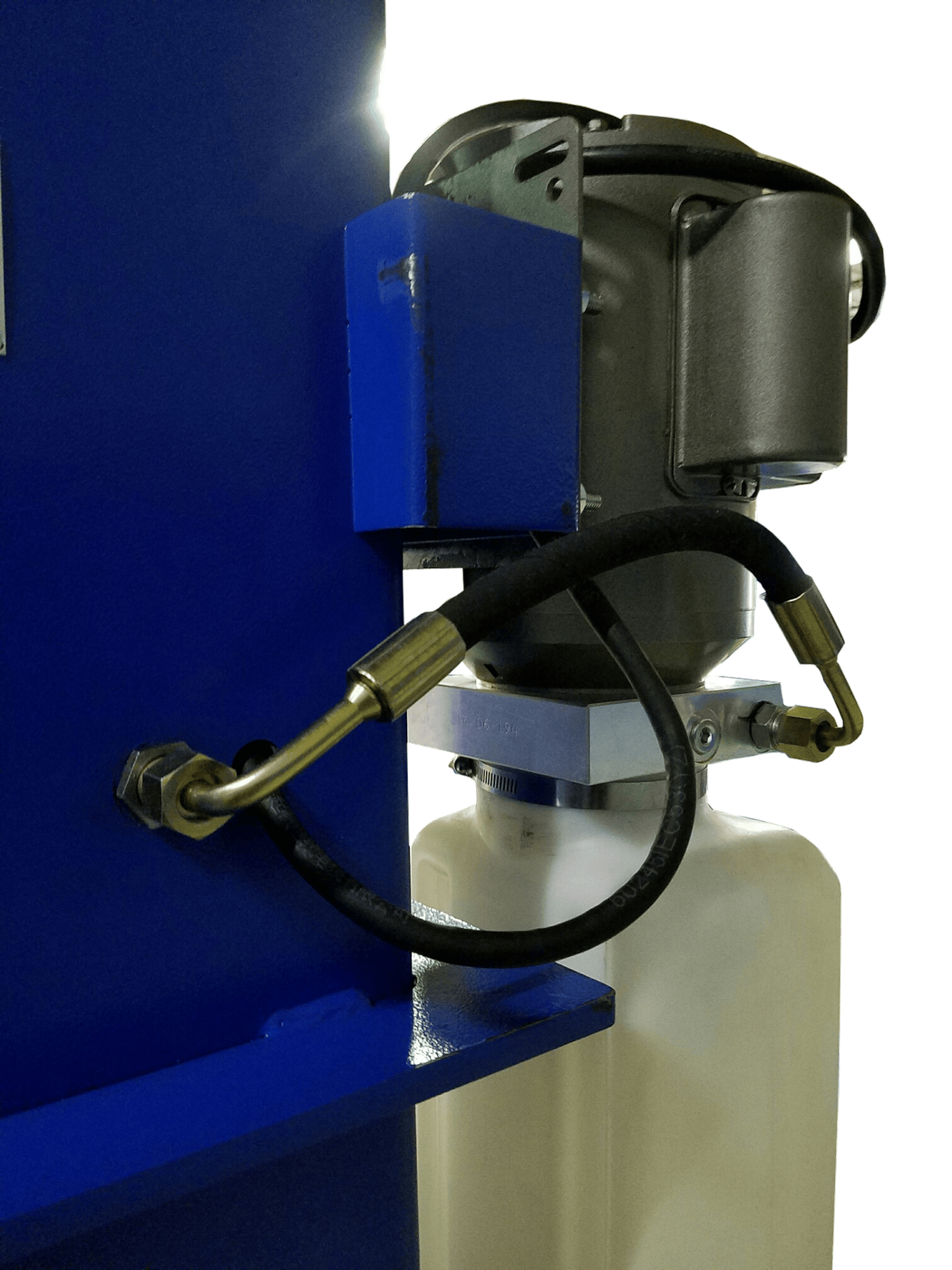

Two Post Floor Plate 12,000 lbs Capacity Symmetric Arms Rubber Door Guards Chain Drive Cylinders Dual Point Lock Release auto Arm Restraint System Spin Up Lift Pads Stackable Adapters Included Internal Hose routing
Manufacturer specifications
- Lifting capacity
- 12,000 lb
- Voltage
- 220V
- Amperage
- 20 AMP
- Shipping weight
- Shipping weight: 2,460 lbs
- Max Height
- 76-1/2"
- Min Height
- 5"
- Arm Reach Max
- 52-1/2"
- Arm Reach Min
- 37"
- Overall Width
- 147-7/8"
- Overall Height
- 121-1/2"
- Rated Capacity
- 12,000 lbs
- Drive Thru Clearance
- 109"
- Width Between Columns
- 120-5/16"
Specifications as published by the manufacturer.
Larger equipment ships LTL freight. Delivery method, lead time and access requirements are confirmed in writing with your quote.
