Tuxedo · Two Post Lifts
Tuxedo TP11KC-DX 11,000-lb 2-Post Car Lift
Model TP11KC-DX
Price
$3,990 each
- Base freight:
- $545 each
- Equipment + base freight:
- $4,535 each
Per item, before tax. Liftgate, unloading, residential or limited-access service and installation are not included.
Planning a business equipment purchase? Explore financing for equipment purchases of $5,000+.
Explore financingIn stock · Condition: New
Manufacturer part number: TP11KC-DX
Base freight: $545.00 per unit to the 48 contiguous states and Washington, DC. Tax is calculated at checkout. Installation and optional accessories are separate.
FORKLIFT REQUIRED for residential delivery. The customer is responsible for unloading. Without suitable unloading equipment or for special delivery service, request a quote before ordering.
Prices shown cover equipment only. Freight or delivery, tax, installation and optional accessories are confirmed separately in your final quote.
Two Post Clear Floor 11,000 lbs Capacity Bi-Symmetric arm design Rubber Door Guards 3 Stage Front Arms Single Piece Column Direct Drive pull Cylinders Single Point Lock Release Heavy Duty Arm Restraint System Spin Up Low Profile Lift Pads Stackable Adapters Included External hose guards
Manufacturer specifications
- Lifting capacity
- 11,000 lb
- Phase
- 1 PH
- Shipping weight
- 1705 lbs
- Voltage
- 220V
- Amperage
- 20 AMP
- Max Height
- 71"
- Min Height
- 4"
- Arm Reach Max
- 57"
- Arm Reach Min
- 41"
- Overall Width
- 145-1/2"
- Overall Height
- 144"
- Rated Capacity
- 11000 lbs
- Drive Thru Clearance
- 104"
- Width Between Columns
- 116"
Specifications as published by the manufacturer.
Larger equipment ships LTL freight. Delivery method, lead time and access requirements are confirmed in writing with your quote.
Is the TP11KC-DX right for you?
Based on the manufacturer's published specifications. Confirm installation requirements in the manufacturer manual before ordering.
Who it suits
- Published 11,000 lb rated capacity — a step up from 9,000 lb models for heavier trucks you lift regularly.

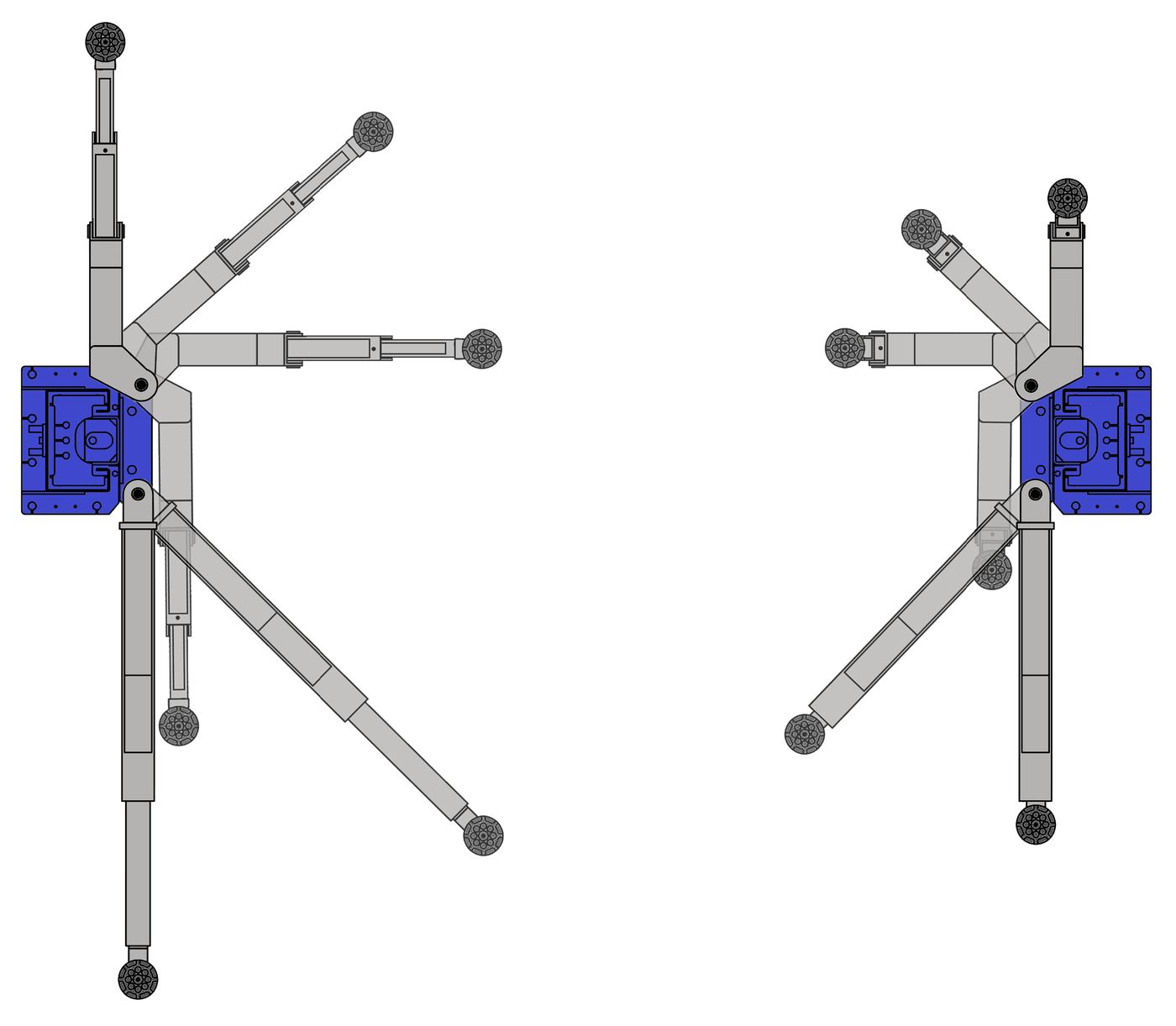

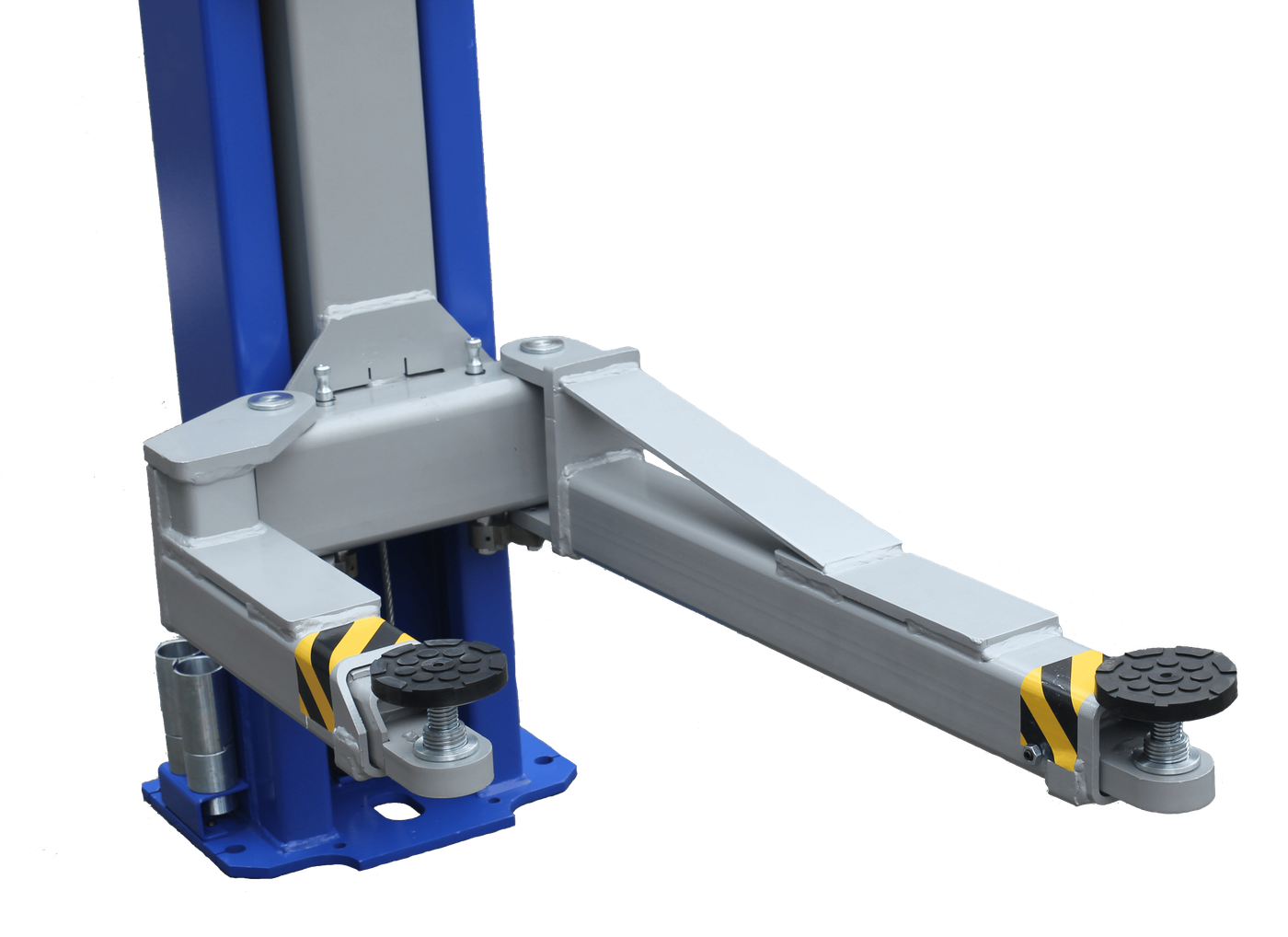

- Bi-symmetric arm design with 3-stage front arms; published short-arm reach 23"–45" and long-arm reach 41"–57".
- Clear-floor design with direct-drive pull cylinders and a single-point lock release.
Measure before you order
- Ceiling: the published overall height is 144". Check it against the manual's ceiling requirement.
- Bay width: overall width 145-1/2" and 116" between columns; drive-thru clearance is 104".
- Power: listed as 220V, 20 amp, single phase.
- Concrete: confirm slab requirements in the manufacturer manual.
Delivery & receiving
- Published Ship Weight is 1,705 lb. Residential freight delivery requires a forklift on site.
