LOW RISE PIT LIFT

Tuxedo · Scissor Lifts

LOW RISE PIT LIFT

Request a quote

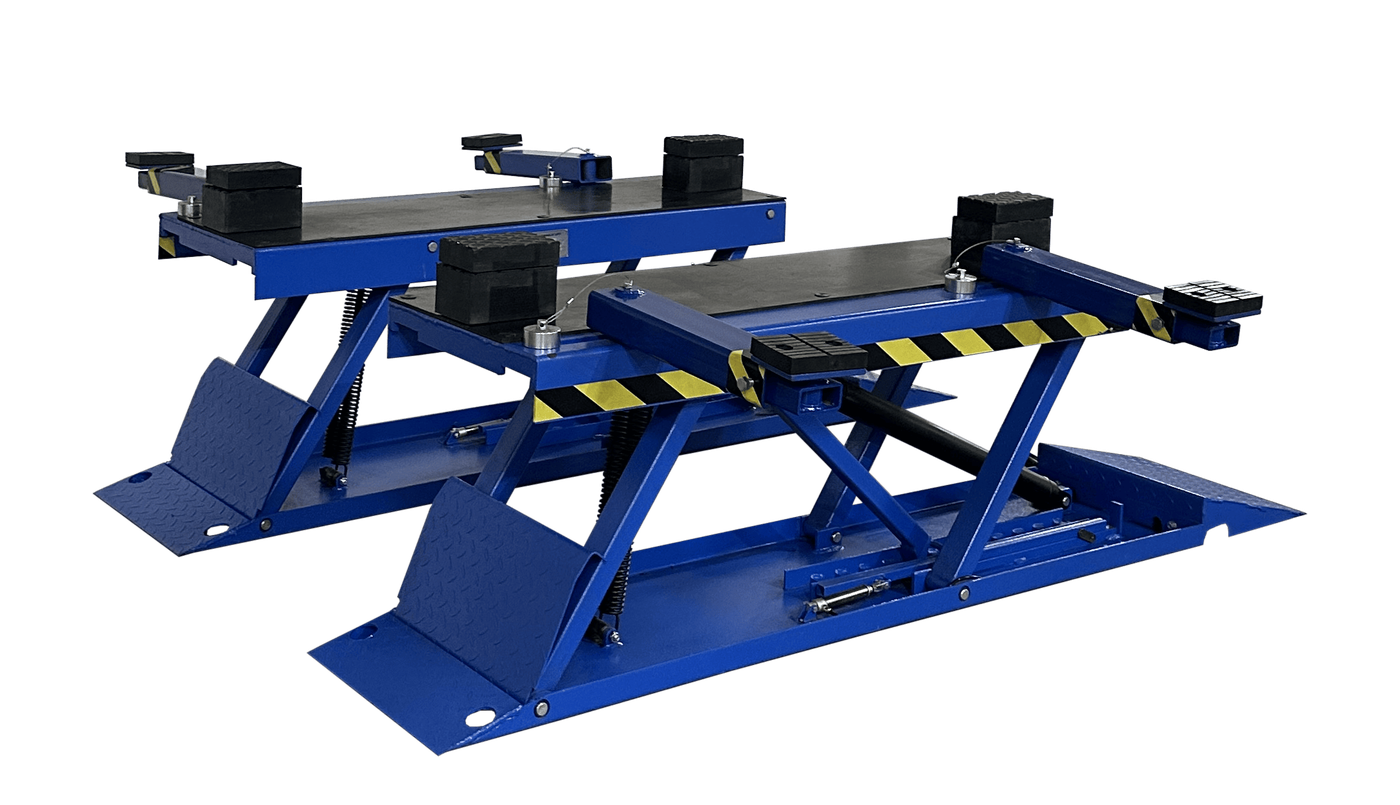

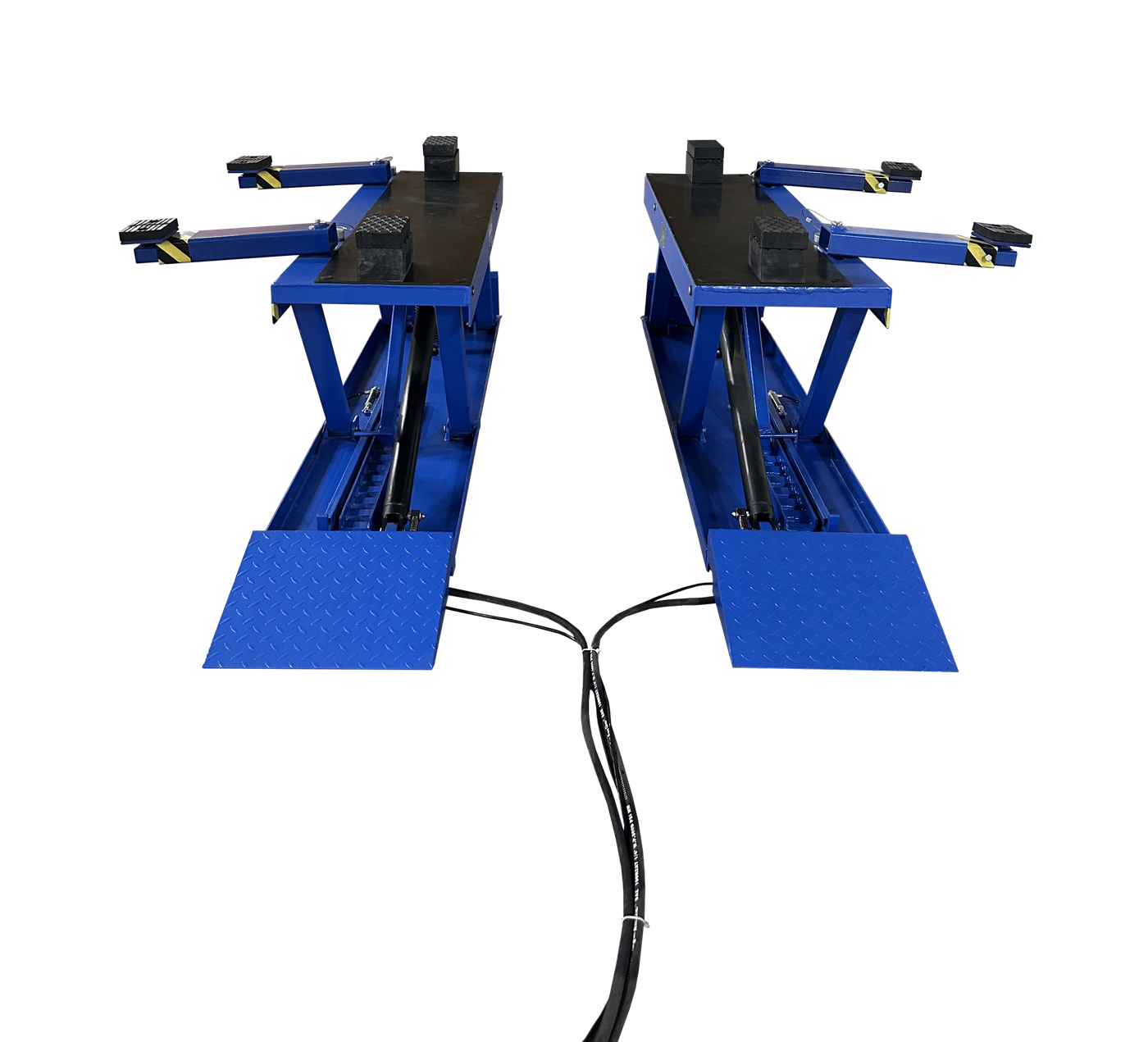

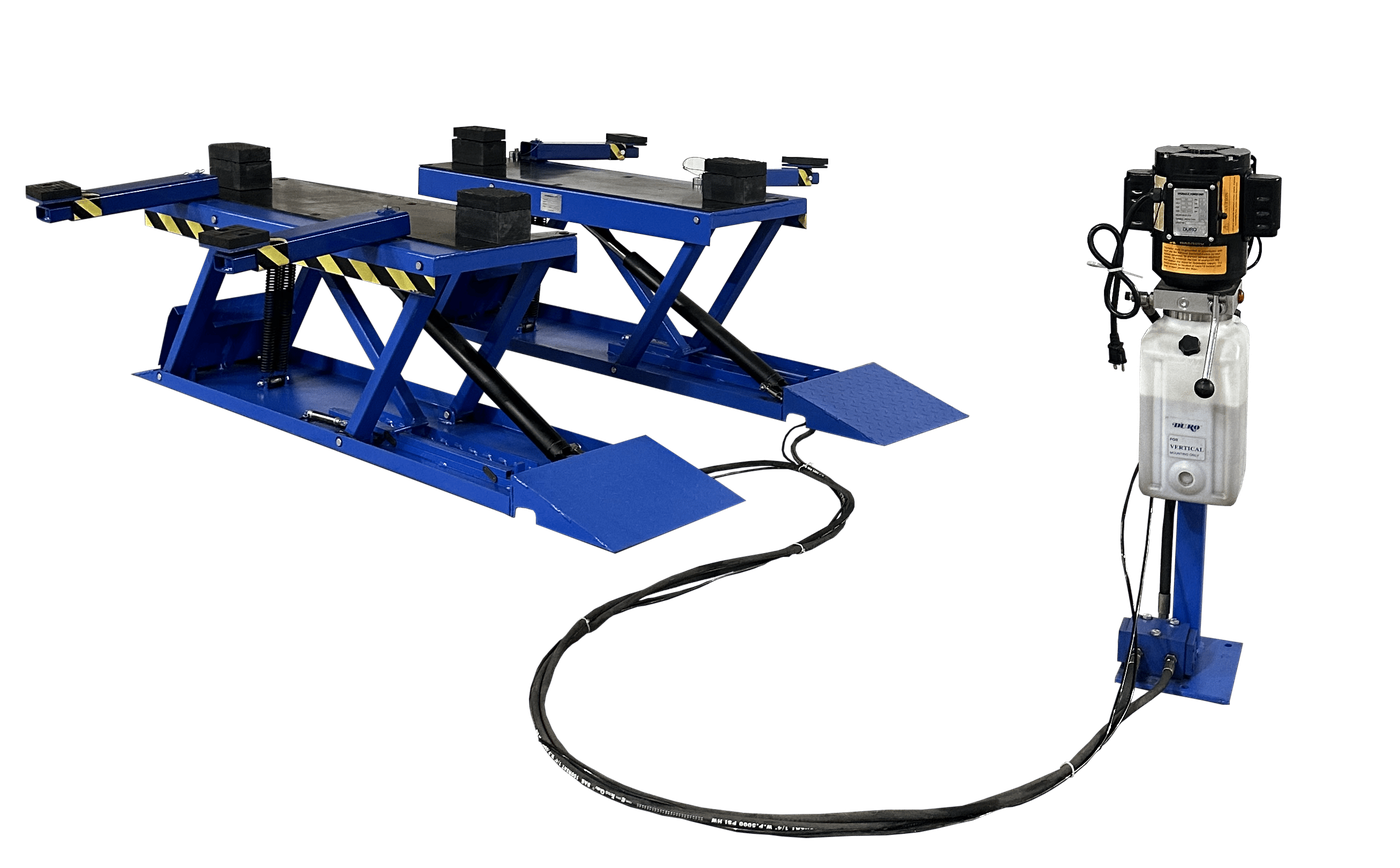

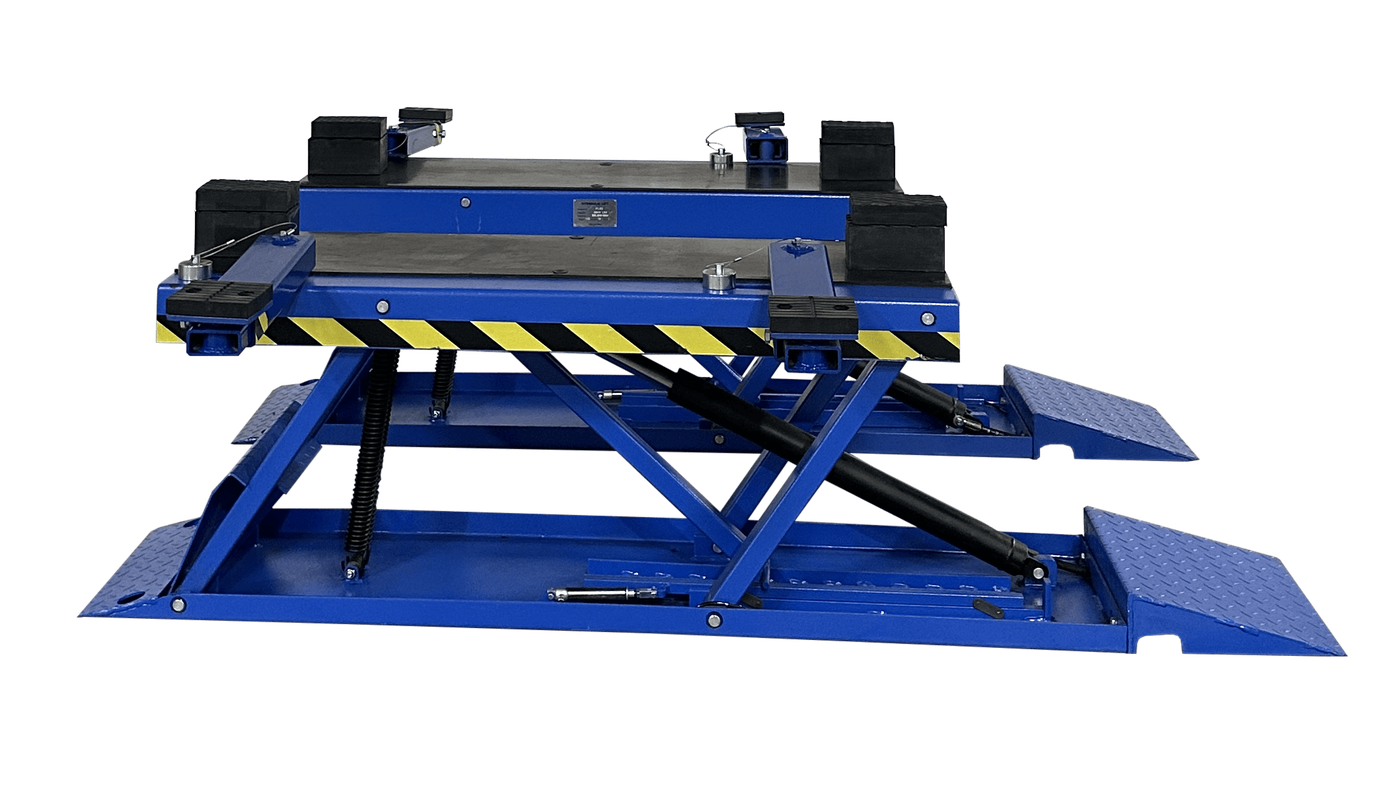

Low Rise Pit Lift 6,000 lbs Capacity Floor Mounted Design Low Driver Over Height Single Point Pneumatic Lock Release Pit Lift to Extend Quick Lube Services Rubber Spacer Blocks Included Optional PL6K-ARMKIT for Frame Lifting Optional PL6K-HEIGHT-ADAPTER Extensions for Frame Lifting

6,600 lb capacity
Available — freight in 5–10 days
Authorized dealer pricing
Nationwide U.S. shipping
Talk to sales

Specifications

weight
770 lbs
voltage
115V
amperage
15 Amp
shipping
Shipping Weight: 770 lbs
max height
30″
min height
4-1/4″
overall width
66″
lifting height
28-1/2″
overall length
83-1/4″
lifting capacity
6,600 lbs
width between columns
0 to 29-1/2″

Most lifts ship LTL freight with lift-gate. Installation and certification available — ask sales for a turnkey quote.
