Tuxedo · Two Post Lifts
Tuxedo TLT210-XT — Two Post Clear Floor
Model TLT210-XT
Request a quote
Planning a business equipment purchase? Explore financing for equipment purchases of $5,000+.
Explore financingThis model is quoted rather than listed. Equipment pricing, freight or delivery, tax, installation and optional accessories are confirmed separately in your final quote.

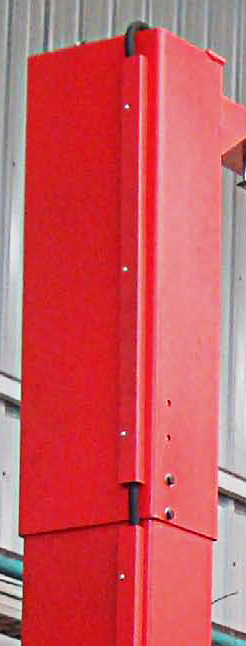

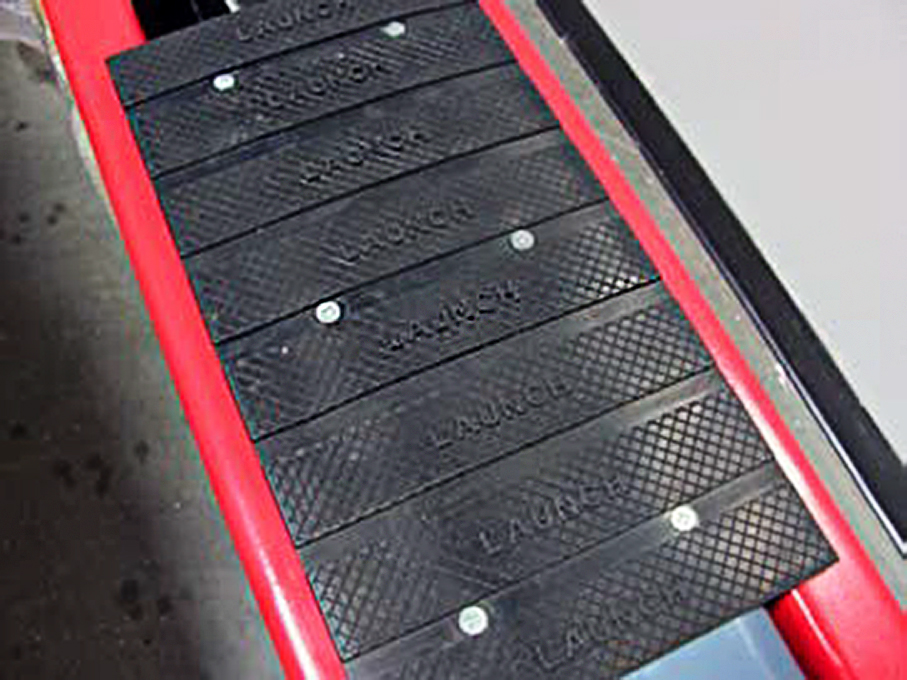

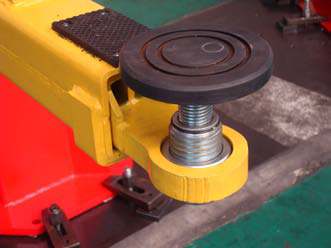

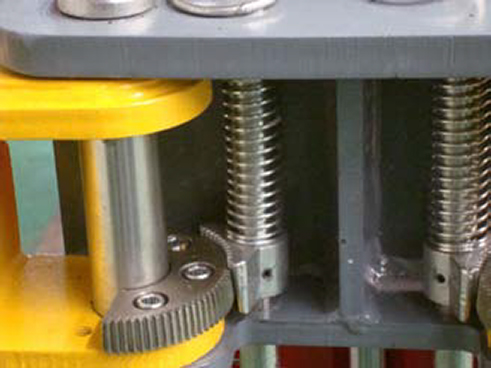

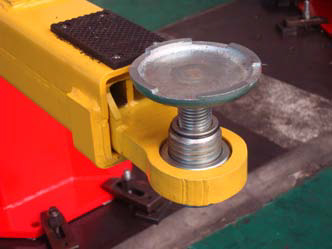

LAUNCH TECH USA, Two Post Clear Floor ALI certified 10,000 lbs capacity Direct Drive cylinders Rubber Door Guards Outer Hose Guards Single Point Lock Release Heavy Duty Arm Restraint System Double Telescoping Screw Pads Adjustable Column Height & width Standard or Rotated Asymmetric Columns Stackable Pad Extensions 3 Stage Front Arms
Manufacturer specifications
- Lifting capacity
- 10,000 lb
- Voltage
- 208-230V
- Shipping weight
- Shipping weight: 1,750 lbs
- Max Height
- 73 in
- Min Height
- 4 in
- Arm Reach Max
- 43.5 in
- Arm Reach Min
- 23.625 in
- Overall Width
- 138 in (Asymmetric), 137 in (Symmetric)
- Overall Height
- 145.5 in / 149 in
- Rated Capacity
- 10,000 lbs
- Drive Thru Clearance
- 88 in (Asymmetric), 98.4 in (Symmetric)
- Width Between Columns
- 110 in / 102 in
Specifications as published by the manufacturer.
Larger equipment ships LTL freight. Delivery method, lead time and access requirements are confirmed in writing with your quote.
