Tuxedo · Shop Equipment
TWO POST CLEAR FLOOR
Request a quote

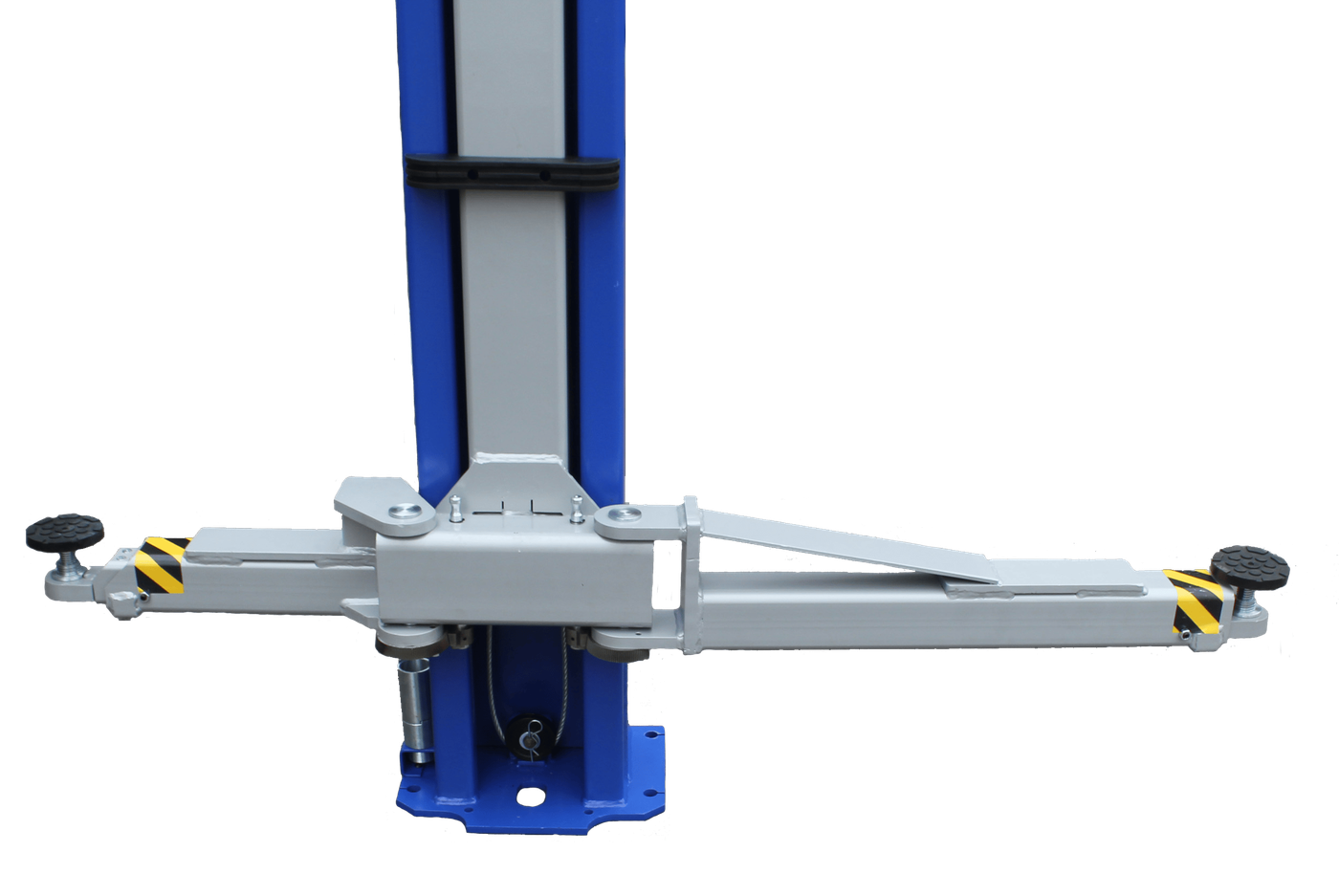

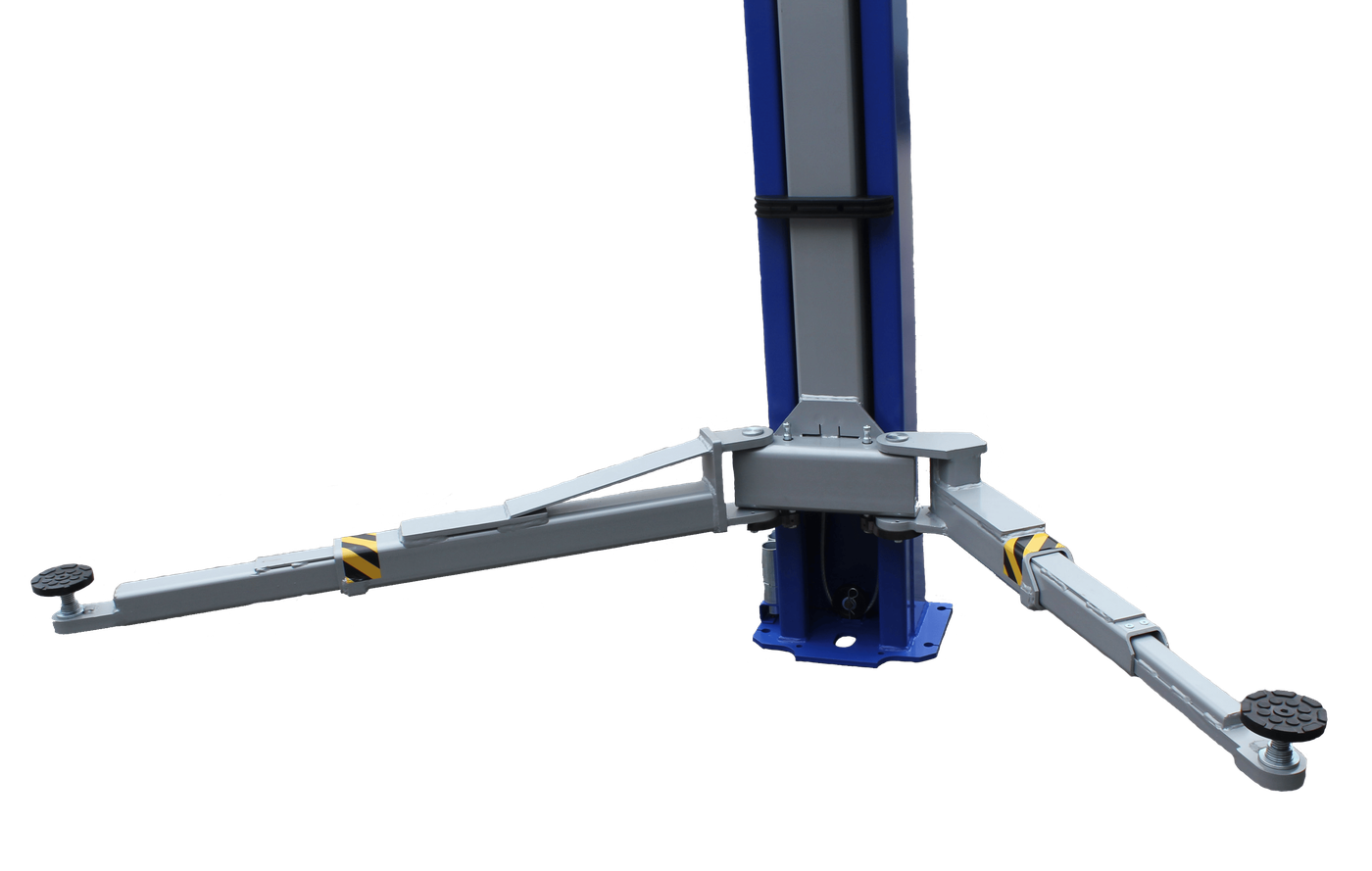

iDEAL, Two Post Clear Floor ALI certified 10,000 lbs capacity Bi-Symmetric arm design Rubber Door Guards 3 Stage Front Arms Single Piece Column Direct Drive pull Cylinders Single Point Lock Release Heavy Duty Arm Restraint System Spin Up Low Profile Lift Pads Stackable Adapters Included External hose guards Duro Certifed Power Unit – MET, UL, CSA
10,000 lb capacity
Available — freight in 5–10 days
Authorized dealer pricing
Nationwide U.S. shipping
Specifications
- phase
- 1 PH
- weight
- 1,705 lbs
- voltage
- 220V
- amperage
- 20 AMP
- max height
- 71"
- min height
- 4"
- arm reach max
- 45"
- arm reach min
- 23"
- overall width
- 145-1/2"
- overall height
- 144"
- rated capacity
- 10,000 lbs.
- drive thru clearance
- 104"
- width between columns
- 116"
Most lifts ship LTL freight with lift-gate. Installation and certification available — ask sales for a turnkey quote.
