SEMI DOWN DRAFT PAINT SPRAY BOOTH
Request a quote

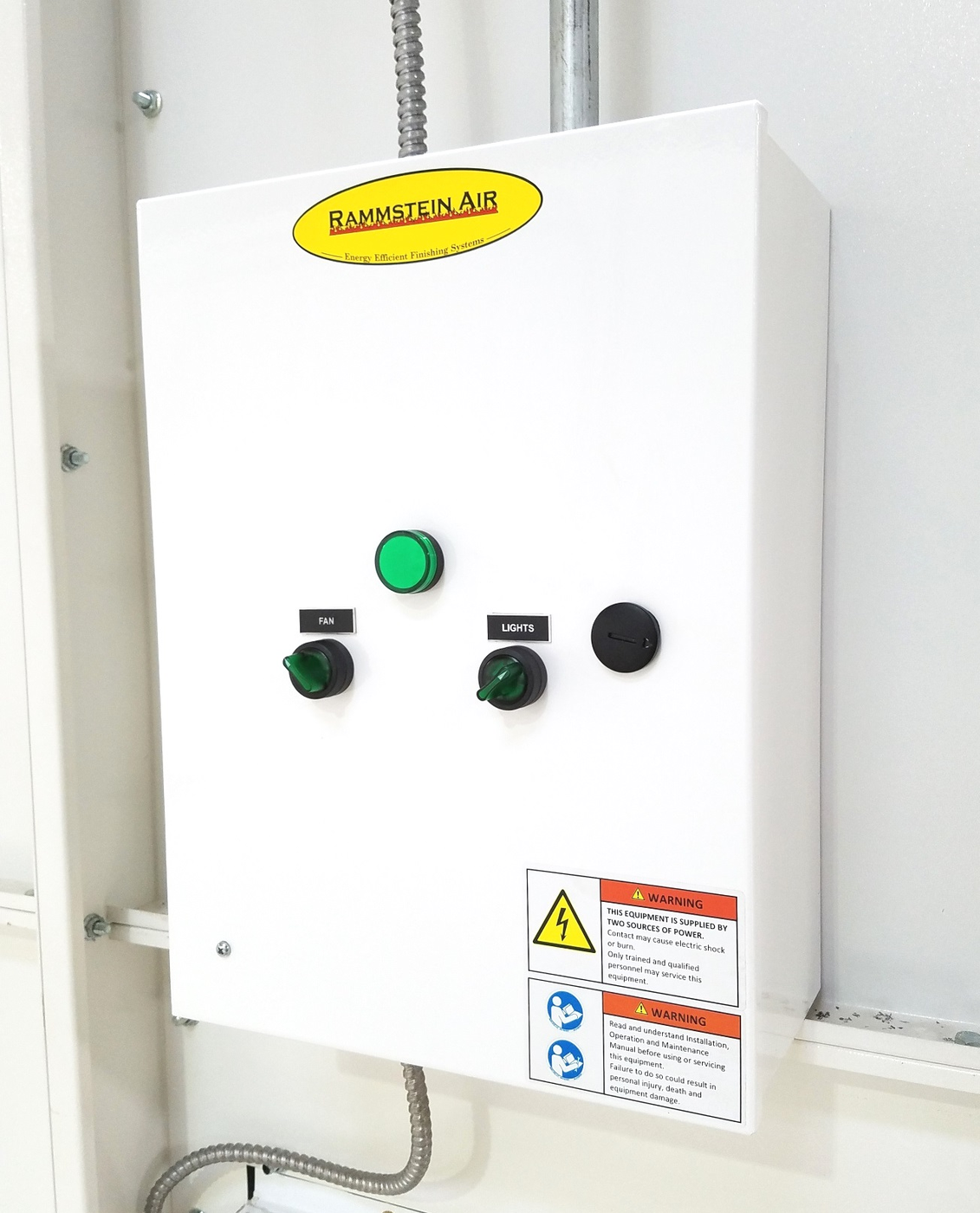

iDEAL, Semi Down Draft Paint Spray Booth Typically ships within 48 hours! Heavy duty precision punched 18 Gauge panel construction Optimal air flow w/ CFM 12,200 @ .5 static pressure Commercial grade ‘hip panel’ design for optimal lighting coverage Inside Dimensions: 26′ L X 14′ W X 9′ 3″ H Convenient 5/16” bolt & nut assembly Deluxe Control Panel included White Powder Coat panel Finish – (inside
Available — freight in 5–10 days
Authorized dealer pricing
Nationwide U.S. shipping
Specifications
- motor
- NEMA rated 3HP-3 Phase – 230/460VAC-60Hz
- phase
- 3
- voltage
- 230/460V
- frequency
- 60Hz
- max height
- 9′ 7"
- motor power
- 3HP
- overall width
- 14′ 4"
- overall height
- 9′ 7"
- overall length
- 29′ 4"
Most lifts ship LTL freight with lift-gate. Installation and certification available — ask sales for a turnkey quote.
