MOBILE SINGLE COLUMN LIFT

Tuxedo · Specialty Lifts

MOBILE SINGLE COLUMN LIFT

Request a quote

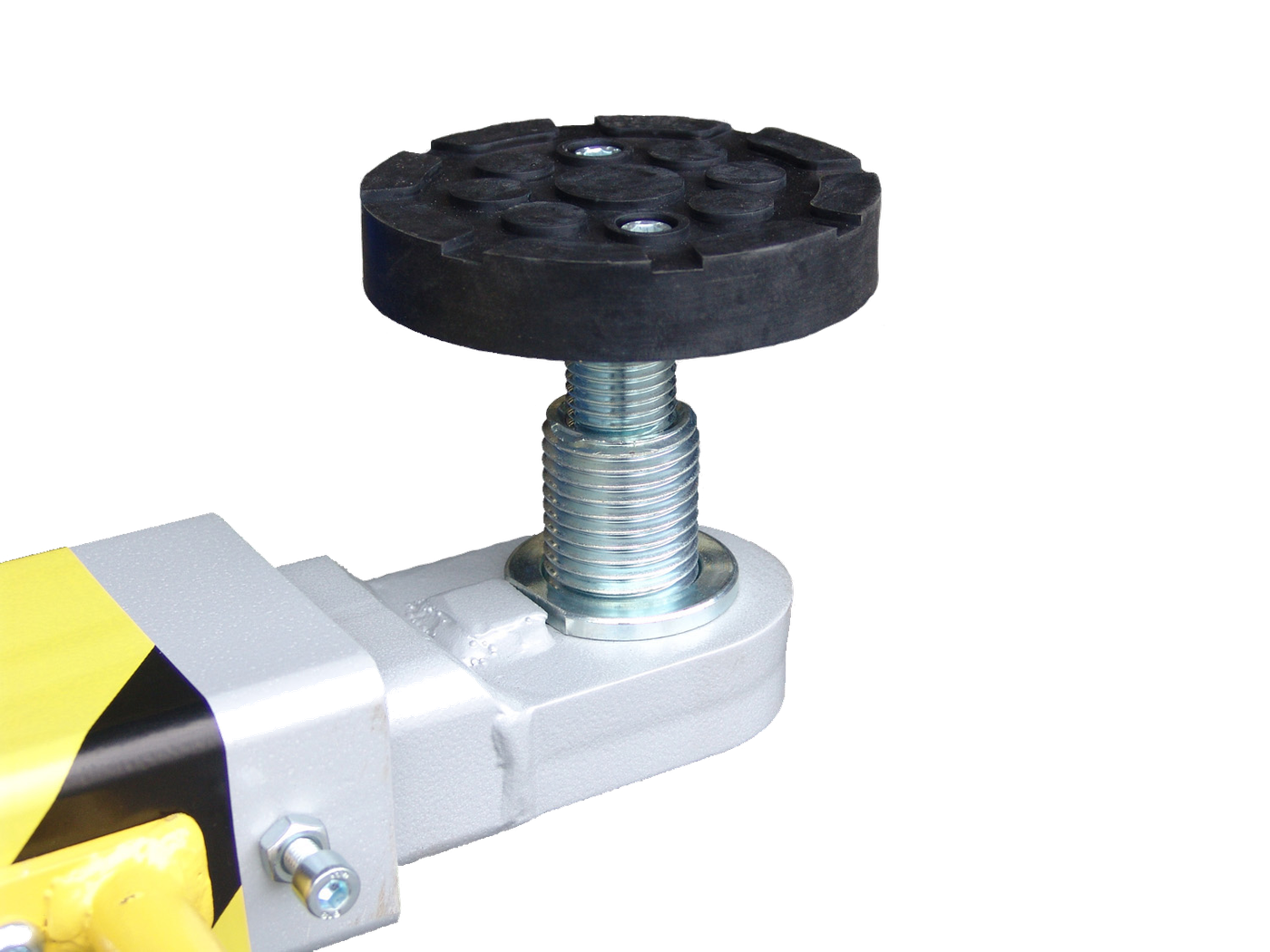

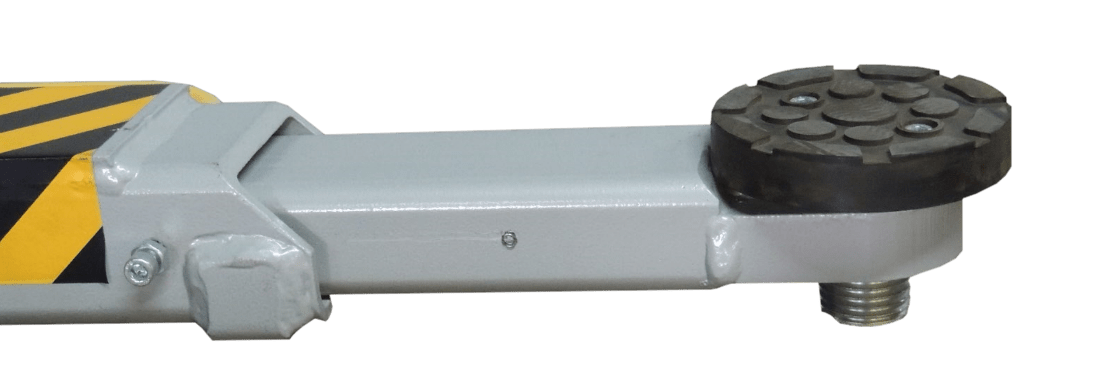

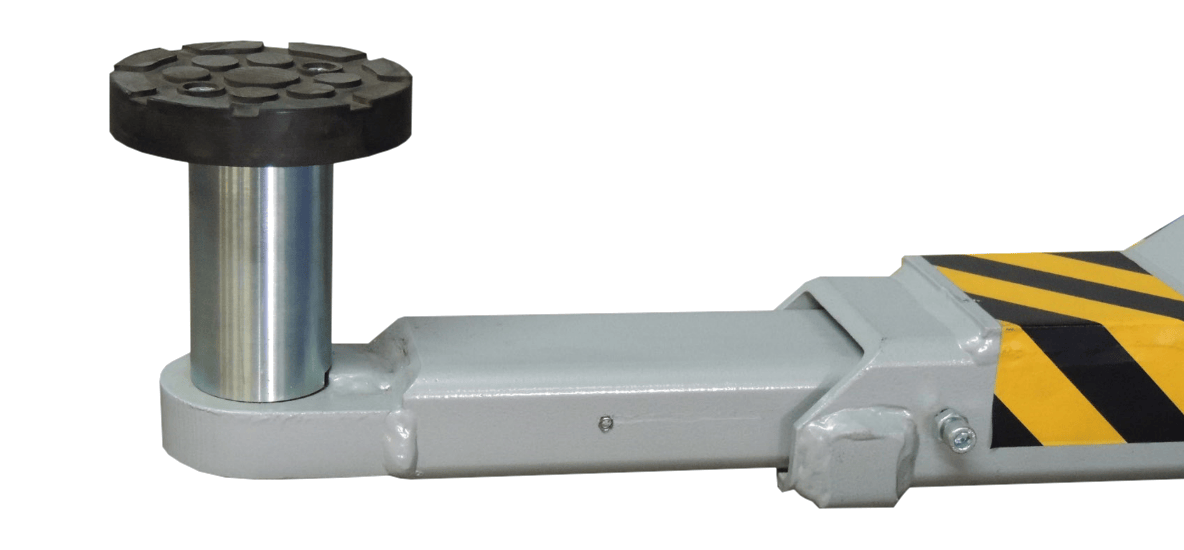

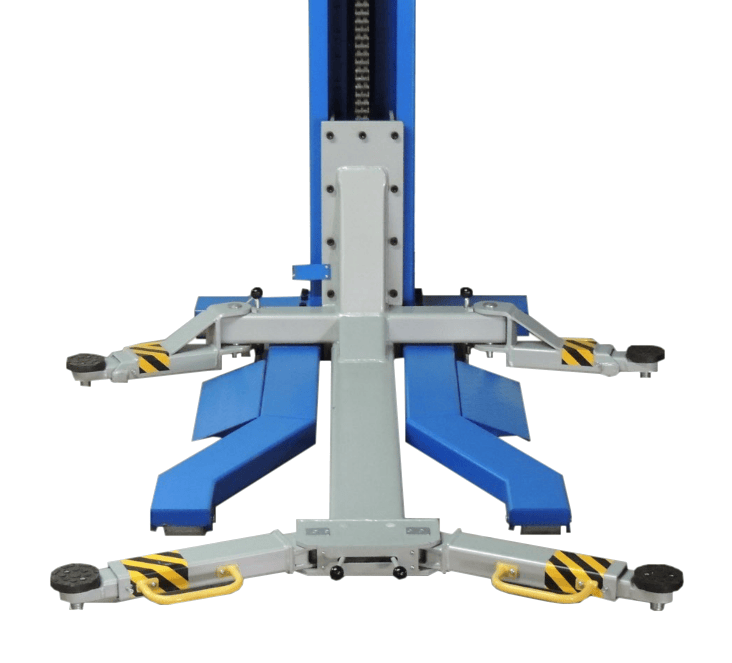

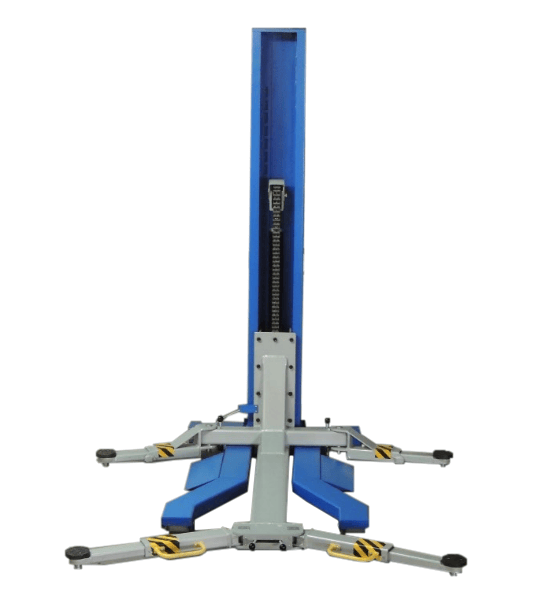

iDEAL, iMOBILE single column lift 6,000 lbs Capacity Low Profile Design under 4” Drive Over Ramps Portability Rigid Base Construction Single Point Lock Release Telescoping Two Stage Swing Arms Double Telescoping Screw Pads Stackable pad height extensions (2 sets of 4ea @ 2” & 4”) Heavy Duty Arm Restraints 21 Locking Positions Durable powder coat finish

6,000 lb capacity
Available — freight in 5–10 days
Authorized dealer pricing
Nationwide U.S. shipping
Talk to sales

Specifications

weight
1850 lbs
voltage
115V
amperage
15 Amp
shipping
Ship Weight: 1,850 lbs
arm reach max
34 inch
arm reach min
19-11/16 inch
overall width
45-3/16 inch
raised height
72 inch
width overall
45-3/16 inch
lifting height
72 inch
overall height
102-3/8 inch
overall length
101-9/16 inch
rated capacity
6000 lbs
shipping weight
1850 lbs
lifting capacity
6000 lbs

Most lifts ship LTL freight with lift-gate. Installation and certification available — ask sales for a turnkey quote.
