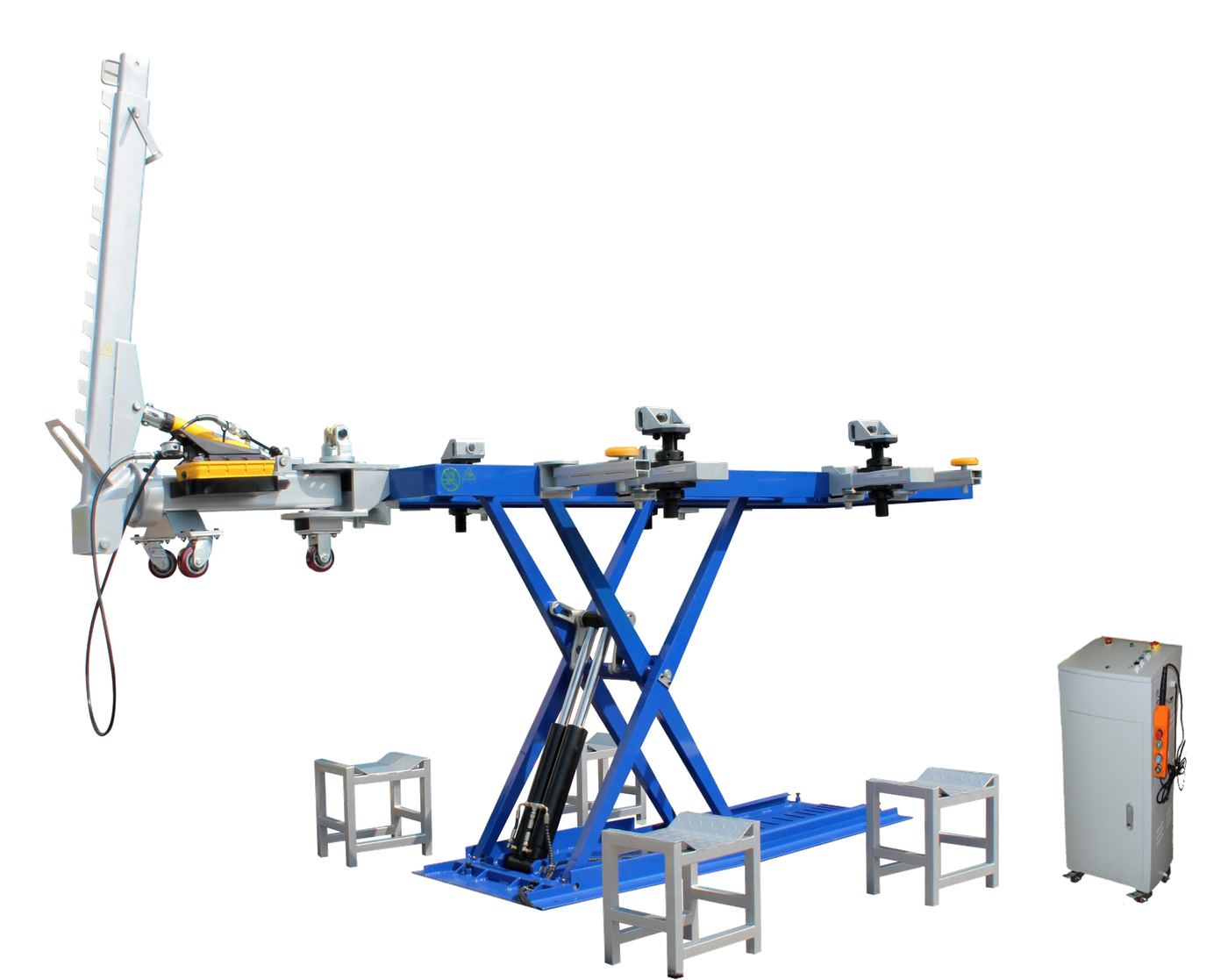

SCISSOR FRAME RACK MACHINE
Request a quote

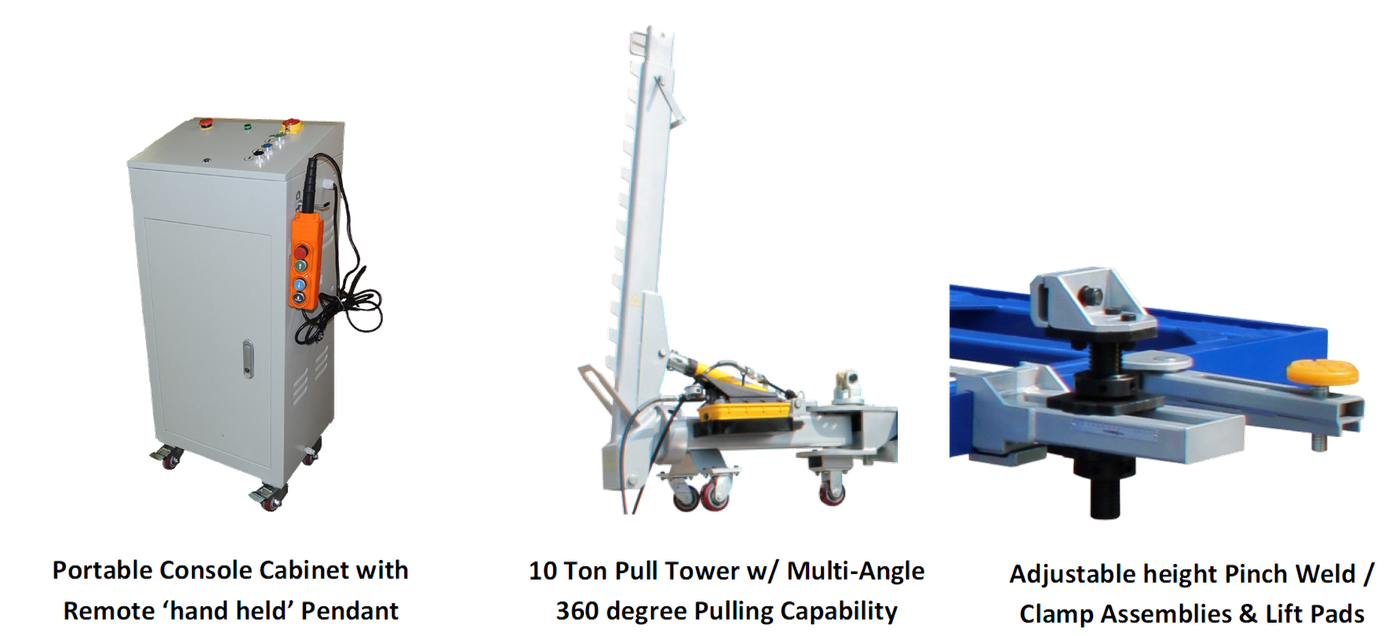

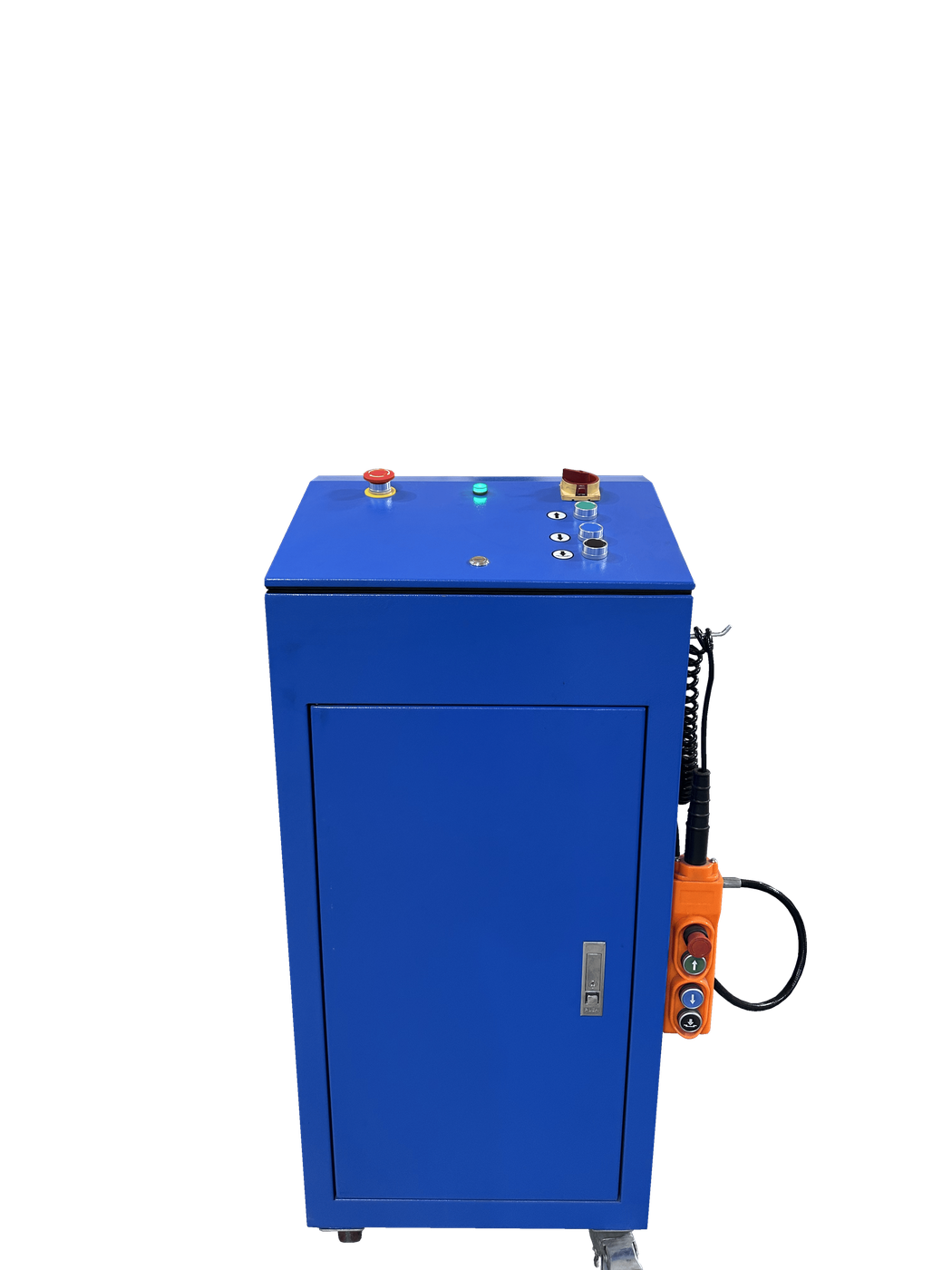

Scissor Style Operation with 5,500lbs. Capacity Simple Console Operation for Raising and Lowering Universal Anchoring System with Adjustable Height Pinch Weld Assemblies One – 10 Ton Pulling Tower with Down Pull Roller Quick Disconnect Hydraulic Fittings One – 10′ Pulling Chains with Hook High Quality Air/Hydraulic Pump with Pressure Gauge Universal Wheel Stands Powder Coat Finish
5,500 lb capacity
Available — freight in 5–10 days
Authorized dealer pricing
Nationwide U.S. shipping
Specifications
- voltage
- 220VAC
- amperage
- 20 AMP
- shipping
- 3,105 lbs
- max height
- 63
- min height
- 4.75
- overall width
- 37
- overall length
- 173.25
- rated capacity
- 5,500 lbs
- shipping weight
- 3,105 lbs
- lifting capacity
- 5,500 lbs
- operating pressure
- 10,000 PSI
Most lifts ship LTL freight with lift-gate. Installation and certification available — ask sales for a turnkey quote.
